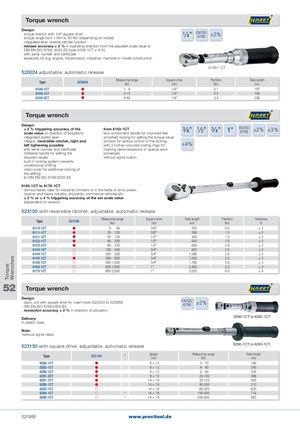

Общий каталог PRECITOOL - страница 993

Torque wrench Design:- torque wrench with 1/4" square drive- torque range from 1 Nm to 40 Nm (depending on model) 1 4" EN/ISO6789 ±2 % - integrated lever reverse ratchet function - release accuracy ± 2 % in operating direction from the adjusted scale value to DIN EN ISO 6789: 2003 (D) (type 6106-1CT ± 4 %) - with serial number and certificate - especially for e.g. engine, transmission, industrial, machine or model construction 6106-1 CT 520024 adjustable, automatic release Type 520024 Measuring rangeNm Square driveInch PartitionNm Total lengthmm 6106-1CT  1- 6  1/4" 0.1 197 6108-1CT  2-10  1/4" 0.2 198 6109-2CT  4-40  1/4" 0.4 256 Torque wrench Design: - ±2 % triggering accuracy of thescale value (in direction of actuation)- from 6143-1CT- two-component handle for improved feel3 8"1 2"3 4"1" EN/ISO6789±2 % ±3 % - integrated switch lever - simplified locking for setting the torque value - integral reversible ratchet, right andleft tightening possible- window for optical control of the locking- with 3 further coloured coding rings for±4 % - with serial number and certificate marking personalisations or special work - rotatable handle for setting the processes required values - without signal button - built-in locking system prevents unintentional shifting - rotary knob for additional locking of the setting - to DIN EN ISO 6789:2003 (D) 6150-1CT to 6170-1CT - dismountable, ideal for industrial climbers or in the fields of wind power, aviation and heavy industry, shipyards, commercial vehicles etc. - ±3 % or ± 4 % triggering accuracy of the set scale value (dependent on version) 523100 with reversible ratchet, adjustable, automatic release Type 523100 Measuring rangeNm Square driveInch Total lengthmm PartitionNm Tolerance% 6110-1CT  5-   60  3/8" 335 0.5 ±2 6111-1CT  20-  120  3/8" 389 1.0 ±2 6121-1CT  20-  120  1/2" 435 1.0 ±2 6122-1CT  40-  200  1/2" 543 1.0 ±2 6123-1CT  60-  320  1/2" 659 2.0 ±2 6143-1CT  100-  400  3/4" 802 2.5 ±2 6144-1CT  200-  500  3/4" 1,046 2.5 ±2 6145-1CT  300-  800  3/4" 1,283 2.5 ±2 6150-1CT  400-1,000  3/4" 1,789 5.0 ±3 6160-1CT  600-1,600  1" 2,455 5.0 ±3 6170-1CT  800-2,000  1" 3,033 6.0 ±4 52 Torque wrench Design: - basic unit with square drive for insert tools (523250 to 523360)- DIN EN ISO 6789:2003 (D) EN/ISO6789±2 % - resolution accuracy ± 2 % in direction of actuation Delivery: 6280-1CT to 6282-1CT In plastic case. Note: *without signal head 523150 with square drive, adjustable, automatic release 6290-1CT to 6295-1CT Type 523150 * Spigotmm Measuring range Total lengthNmmm 6280-1CT    9 × 12  2- 10  180 6282-1CT    9 × 12  4- 40  240 6290-1CT    9 × 12  5- 60  305 6291-2CT    9 × 12  20-120  388 6291-1CT  14 × 18  20-120  400 6292-1CT  14 × 18  40-200  510 6293-1CT  14 × 18  60-320  620 6294-1CT  * 14 × 18 100-400  718 6295-1CT  * 14 × 18 200-500  962 52/988 www.precitool.de Torque Wrenches
