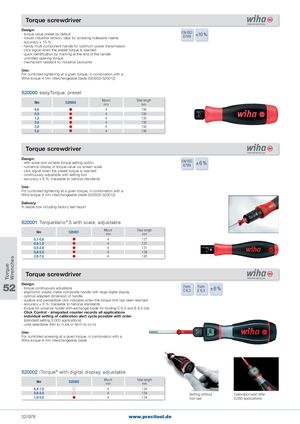

Общий каталог PRECITOOL - страница 983

Torque screwdriver Design:- torque value preset by default- robust industrial version, ideal for screwing indexable insertsEN/ISO6789±10 % - accuracy ± 10 % - handy multi-component handle for optimum power transmission - click signal when the preset torque is reached - quick identification by marking at the end of the handle - unlimited opening torque - mechanism resistant to industrial lubricants Use: For controlled tightening at a given torque, in combination with a Wiha torque 4 mm interchangeable blade (520003-520012) 520000 easyTorque, preset Nm 520000 Mountmm Total lengthmm 0,6  4 130 0,9  4 130 1,2  4 130 2,0  4 130 3,0  4 130 5,0  4 130 Torque screwdriver Design: - with scale and variable torque setting option- numerical display of torque value via screen scale EN/ISO6789±6% - click signal when the preset torque is reached - continuously adjustable with setting tool - accuracy ± 6 %, traceable to national standards Use: For controlled tightening at a given torque, in combination with a Wiha torque 4 mm interchangeable blade (520003-520012) Delivery: In stable box including factory test report 520001 TorqueVario® S with scale, adjustable Nm 520001 Mountmm Total lengthmm 0,1-0,6  4 127 0,4-1,0  4 127 0,5-2,0  4 131 0,8-5,0  4 138 2,0-7,0  4 142 Torque screwdriver 52 Design:- torque continuously adjustable- ergonomic plastic-metal composite handle with large digital displayFormC 6,3FormE 6,3±6% - optimal adapted dimension of handle - audible and perceptible click indicates when the torque limit has been reached - accuracy ± 6 %, traceable to national standards - torque bit universal holder with exchange blade for holding C 6.3 and E 6.3 bits - Click Control - integrated counter records all applications - individual setting of calibration alert cycle possible with order (standard setting 5,000 applications) - units selectable (Nm to in.lbs or Ncm to oz.in) Use: For controlled screwing at a given torque, in combination with a Wiha torque 4 mm interchangeable blade 520002 iTorque® with digital display, adjustable Nm 520002 Mountmm Total lengthmm 0,4-1,5  4 134 0,8-3,0  4 134 Setting without Calibration alert after 1,0-5,0  4 134 tool use 5,000 applications 52/978 www.precitool.de Torque Wrenches
