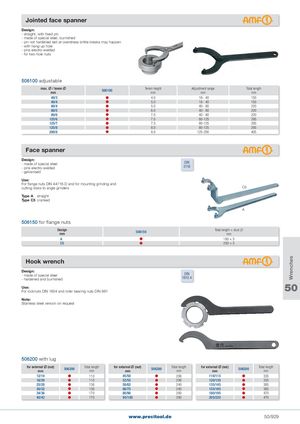

Jointed face spanner Design: - straight, with fixed pin - made of special steel, burnished - pin not hardened lest at overstress brittle breaks may happen - with hang-up hole - pins electro-welded - for two-hole nuts 506100 adjustable max.  / tenon mm 506100 Tenon height Adjustment rangemmmm Total lengthmm  40/3  4.0  18- 40 150  40/4  5.0  18- 40 150  80/4  5.0  40- 80 220  80/5  6.0  40- 80 220  80/6  7.0  40- 80 220 125/6  7.0  80-125 295 125/7  7.5  80-125 295 125/8  8.0  80-125 295 200/8  8.0 125-200 405 Face spanner Design:- made of special steel- pins electro-welded DIN3116 - galvanised Use: For flange nuts DIN 44716-D and for mounting grinding and cutting disks to angle grinders C5 Type A straight Type C5 cranked A 506150 for flange nuts Designmm 506150 Total length × stud mm A  180 × 5 C5  200 × 5 Hook wrench Design:- made of special steel- hardened and burnished DIN1810 A Use:For locknuts DIN 1804 and roller bearing nuts DIN 981 50 Note: Stainless steel version on request 506200 with lug for external  (nut)mm 506200 Total lengthmm for external  (nut)mm 506200 Total lengthmm for external  (nut)mm 506200 Total lengthmm 12/14  110 45/50  206 110/115  335 16/20  110 52/55  206 120/130  335 25/28  136 58/62  240 135/145  385 30/32  136 68/75  240 155/165  385 34/36  170 80/90  280 180/195  470 40/42  170 95/100  280 205/220  470 www.precitool.de 50/929 Wrenches
