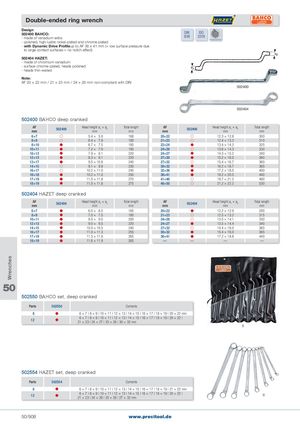

Double-ended ring wrench Design 502400 BAHCO: DIN ISO - made of vanadium extra 838 3318 Dynamic-Drive-Profil - polished, high-lustre nickel-plated and chrome-plated - with Dynamic Drive Profileup to AF 36 x 41 mm (= low surface pressure due to large contact surfaces = no notch-effect) 502404 HAZET: - made of chromium-vanadium - surface chrome-plated, heads polished - heads thin-walled Note: AF 20 × 22 mm / 21 × 23 mm / 24 × 26 mm non-compliant with DIN 502400 502404 502400 BAHCO deep cranked AFmm 502400 Head height a1 × a2mm Total lengthmm AFmm 502400 Head height a1 × a2 mm Total lengthmm 6×7    5.4 ×   5.9 168 20×22  12.3 × 12.8 300 8×9    6.4 ×   7.9 180 21×23  12.4 × 13.3 310  8×10    6.7 ×   7.5 185 22×24  13.4 × 14.2 325 10×11    7.2 ×   7.9 195 24×26  13.6 × 14.3 330 10×13    7.9 ×   9.1 220 24×27  14.3 × 15.2 340 12×13    8.3 ×   9.1 220 27×30  15.2 × 16.0 360 13×17    9.5 × 10.8 240 27×32  15.4 × 16.7 360 14×15    9.1 ×   9.9 230 30×32  16.2 × 16.7 365 16×17  10.2 × 11.0 245 32×36  17.2 × 18.5 400 16×18  10.2 × 11.0 250 36×41  19.2 × 20.5 440 17×19  11.0 × 11.8 270 41×46  19.7 × 21.2 480 18×19  11.0 × 11.8 275 46×50  21.2 × 22.2 530 502404 HAZET deep cranked AFmm 502404 Head height a1 × a2mm Total lengthmm AFmm 502404 Head height a1 × a2 mm Total lengthmm 6×7    6.0 ×   6.5 165 20×22  12.2 × 12.9 295 8×9    7.0 ×   7.5 180 21×23  12.5 × 13.2 315 10×11    8.0 ×   9.0 200 24×26  13.5 × 14.1 330 12×13    9.0 ×   9.5 220 24×27  13.5 × 14.4 340 14×15  10.0 × 10.5 240 27×32  14.4 × 16.0 365 16×17  11.0 × 11.3 255 30×32  15.4 × 16.0 365 17×19  11.3 × 11.9 265 36×41  17.2 × 18.8 440 18×19  11.6 × 11.9 265 — — — — 50 502550 BAHCO set, deep cranked Parts 502550 Contents  8    6 × 7 | 8 × 9 | 10 × 11 | 12 × 13 | 14 × 15 | 16 × 17 | 18 × 19 | 20 × 22 mm 12    6 × 7 | 8 × 9 | 10 × 11 | 12 × 13 | 14 × 15 | 16 × 17 | 18 × 19 | 20 × 22 |21 × 23 | 24 × 27 | 25 × 28 | 30 × 32 mm 8 502554 HAZET set, deep cranked Parts 502554 Contents  8    6 × 7 | 8 × 9 | 10 × 11 | 12 × 13 | 14 × 15 | 16 × 17 | 18 × 19 | 21 × 22 mm 12    6 × 7 | 8 × 9 | 10 × 11 | 12 × 13 | 14 × 15 | 16 × 17 | 18 × 19 | 20 × 22 |21 × 23 | 24 × 26 | 25 × 28 | 27 × 32 mm 8 50/908 www.precitool.de Wrenches
