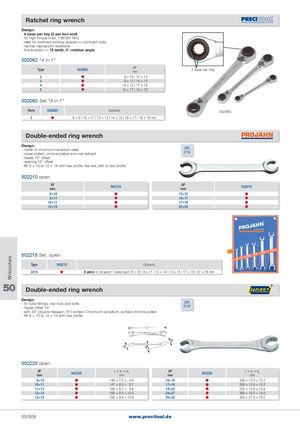

Общий каталог PRECITOOL - страница 911

Ratchet ring wrench Design: - 4 sizes per key (2 per box end) - for high torque (max. 138/387 Nm) - ideal for confined working spaces => compact sizes - ratchet mechanism reversible - fine-toothed => 72 teeth, 5° rotation angle 502062 "4 in 1" Type 502062 AFmm 2 sizes per ring 2    8 × 10 | 12 × 13 3    9 × 11 | 14 × 15 4  10 × 13 | 17 × 19 5  16 × 17 | 18 × 19 502060 Set "4 in 1" Parts 502060 Contents 502060 3  8 × 9 / 10 × 11 | 12 × 13 / 14 × 15 | 16 × 17 / 18 × 19 mm Double-ended ring wrench Design:- made of chromium-vanadium steel- nickel-plated, chrome-plated and mat satined DIN3118 - heads 15° offset - opening 15° offset - AF 8 × 10 to 12 × 14 with hex profile, the rest with bi-hex profile 502210 open AFmm 502210 AFmm 502210  8×10  13×15   9×11  14×17  10×11  17×19  12×14  22×24  502215 Set, open Type 502215 Contents 2216  6-piece in roll pouch 1 piece each: 8 × 10 | 9 × 11 | 12 × 14 | 13 × 15 | 17 × 19 | 22 × 24 mm 50 Double-ended ring wrench Design: - for tube fittings, cap nuts and bolts- heads offset 15° DIN3118 - with 30° (double hexagon 15°) slotted. Chromium-vanadium, surface chrome-plated - AF 8 × 10 to 12 × 14 with hex profile 502220 open AFmm 502220 L × a1 × a2mm AFmm 502220 L × a1 × a2mm  8×10  140 × 7.0 ×   8.0 16×18  208 × 12.0 × 13.2 10×11  147 × 8.0 ×   8.7 17×19  208 × 12.0 × 13.2 11×13  160 × 8.7 ×   9.8 19×22  222 × 13.8 × 15.8 12×14  168 × 9.2 × 10.3 24×27  260 × 16.2 × 18.0 13×15  182 × 9.8 × 10.9 30×32  300 × 21.0 × 23.0 50/906 www.precitool.de Wrenches
