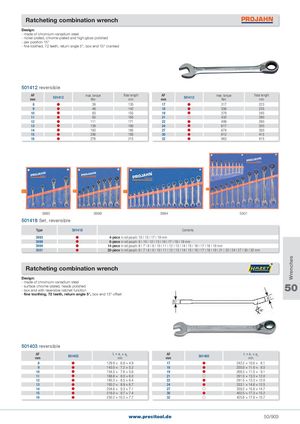

Общий каталог PRECITOOL - страница 908

Ratcheting combination wrench Design: - made of chromium-vanadium steel - nickel-plated, chrome-plated and high-gloss polished - jaw position 15° - fine toothed, 72 teeth, return angle 5°, box end 15° cranked 501412 reversible AFmm 501412 max. torqueNm Total lengthmm AFmm 501412 max. torqueNm Total lengthmm  8   39 135 17  317 223  9   49 142 18  356 235 10   83 155 19  379 245 11   93 165 21  432 280 12  111 171 22  499 280 13  139 180 24  617 320 14  193 185 27  674 350 15  236 195 30  812 415 16  278 215 32  963 415 3993 3999 3994 3501 501418 Set, reversible Type 501418 Contents 3993   4-piece in roll pouch: 10 | 13 | 17 | 19 mm 3999   8-piece in roll pouch: 8 | 10 | 12 | 13 | 16 | 17 | 18 | 19 mm 3994  14-piece in roll pouch: 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 mm 3501  20-piece in roll pouch: 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 21 | 22 | 24 | 27 | 30 | 32 mm Ratcheting combination wrench Design: - made of chromium-vanadium steel - surface chrome-plated, heads polished- box end with reversible ratchet function 50 - fine toothing, 72 teeth, return angle 5°, box end 13° offset 1 2 501403 reversible AFmm 501403 L × a1 × a2mm AFmm 501403 L × a1 × a2mm  8  129.9 ×   6.8 × 4.9 17  242.2 × 10.6 ×   8.1  9  143.0 ×   7.2 × 5.2 18  255.0 × 11.0 ×   8.5 10  154.5 ×   7.6 × 5.6 19  268.3 × 11.5 ×   9.1 11  168.6 ×   8.0 × 6.0 21  291.5 × 13.3 × 12.0 12  180.3 ×   8.5 × 6.4 22  291.5 × 13.3 × 12.0 13  193.2 ×   8.9 × 6.7 24  333.1 × 14.8 × 12.5 14  204.6 ×   9.3 × 7.1 27  359.2 × 15.8 × 14.7 15  218.0 ×   9.7 × 7.4 30  402.5 × 17.3 × 15.2 16  230.2 × 10.2 × 7.7 32  425.8 × 17.8 × 15.7 www.precitool.de 50/903 Wrenches
