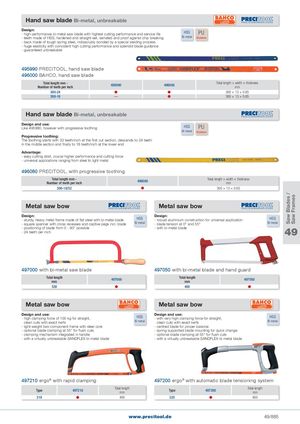

Общий каталог PRECITOOL - страница 890

Saw Blades / Saw Frames Hand saw blade Bi-metal, unbreakable Design:- high-performance bi-metal saw blade with highest cutting performance and service life HSS PU - teeth made of HSS, hardened and straight-set, serrated and proof against chip breaking Bi metal 10 pieces - back made of tough spring steel, indissolubly bonded by a special welding process - huge elasticity with coincident high cutting performance and splendid blade guidance - guaranteed unbreakable 495990 PRECITOOL, hand saw blade 496000 BAHCO, hand saw blade Total length mm -Number of teeth per inch 495990 496000 Total length × width × thicknessmm 300-24   300 × 13 × 0.65 300-18 —  300 × 13 × 0.65 Hand saw blade Bi-metal, unbreakable Design and use:Like 495990, however with progressive toothing HSS PU Bi metal 10 pieces Progressive toothing: The toothing starts with 32 teeth/inch at the first cut section, descends to 24 teeth in the middle section and finally to 18 teeth/inch at the lower end Advantage: - easy cutting start, crucial higher performance and cutting force - universal applications ranging from steel to light metal 496080 PRECITOOL, with progressive toothing Total length mm -Number of teeth per inch 496080 Total length × width × thicknessmm 300-18/32  300 × 13 × 0.65 Metal saw bow Metal saw bow Design:- sturdy, heavy metal frame made of flat steel with bi-metal blade HSS Design:- robust aluminium construction for universal application HSS - square spanner with cross recesses and captive pegs incl. blade Bi metal - blade tension at 0° and 55° Bi metal - positioning of blade from 0 - 90° possible - with bi-metal blade- 24 teeth per inch 49 497000 with bi-metal saw blade 497050 with bi-metal blade and hand guard Total lengthmm 497000 Total lengthmm 497050 530  400  Metal saw bow Metal saw bow Design and use:- high clamping force of 100 kg for straight, HSS Design and use:- with very high clamping force for straight, HSS clean cuts with exact kerfs Bi metal clean cuts with exact kerfs Bi metal - light-weight two-component frame with steel core - centred blade for proper balance - optional blade clamping at 55° for flush cuts - spring-supported blade mounting for quick change - clamping mechanism integrated in handle - optional blade clamping at 55° for flush cuts - with a virtually unbreakable SANDFLEX bi-metal blade - with a virtually unbreakable SANDFLEX bi-metal blade 497210 ergo® with rapid clamping 497200 ergo® with automatic blade tensioning system Type 497210 Total lengthmm Type 497200 Total lengthmm 319  400 325  400 www.precitool.de 49/885
