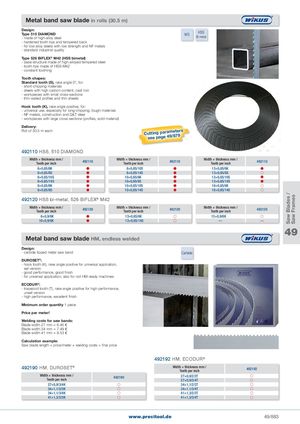

Общий каталог PRECITOOL - страница 888

Saw Blades / Saw Frames Metal band saw blade in rolls (30.5 m) Design:Type 510 DIAMOND- made of high-alloy steel WS HSSBi metal - hardened tooth tips and tempered back - for low alloy steels with low strength and NF metals - standard industrial quality Type 526 BIFLEX® M42 (HSS bimetal) - base structure made of high-alloyed tempered steel - tooth tips made of HSS-M42 - constant toothing Tooth shapes: Standard tooth (S), rake angle 0°, for: - short-chipping materials - steels with high carbon content, cast iron - workpieces with small cross-sections - thin-walled profiles and thin sheets Hook tooth (K), rake angle positive, for: - universal use, especially for long-chipping, tough materials - NF metals, construction and Q&T steel - workpieces with large cross-sections (profiles, solid material) Delivery: Roll of 30.5 m each Custeteinpgapgaera4m9/e8t7e9rs 492110 HSS, 510 DIAMOND Width × thickness mm /Teeth per inch492110 Width × thickness mm /Teeth per inch492110 Width × thickness mm /Teeth per inch492110 6×0,65/6K   8×0,65/10S  13×0,65/6K  6×0,65/8S   8×0,65/14S  13×0,65/8S  6×0,65/10S  10×0,65/6K  13×0,65/10S  6×0,65/14S  10×0,65/8S  13×0,65/14S  8×0,65/6K  10×0,65/10S  16×0,65/6K  8×0,65/8S  10×0,65/14S  16×0,65/14S  492120 HSS bi-metal, 526 BIFLEX® M42 Width × thickness mm /Teeth per inch492120 Width × thickness mm /Teeth per inch492120 Width × thickness mm /Teeth per inch492120  6×0,9/6K  13×0,65/6K  13×0,9/6K  10×0,9/6K   13×0,65/14S  — — 49 Metal band saw blade HM, endless welded Design: - carbide tipped metal saw band Carbide DUROSET®: - hook tooth (K), rake angle positive for universal application, set version - good performance, good finish - for universal application, also for not HM-ready machines ECODUR®: - trapezoid tooth (T), rake angle positive for high performance, unset version - high performance, excellent finish Minimum order quantity 1 piece Price per meter! Welding costs for saw bands: Blade width 27 mm = 6.45 € Blade width 34 mm = 7.49 € Blade width 41 mm = 8.53 € Calculation example: Saw blade length × price/meter + welding costs = final price 492192 HM, ECODUR® 492190 HM, DUROSET® Width × thickness mm /Teeth per inch 492192 Width × thickness mm /Teeth per inch 492190 27×0,9/2/3T 27×0,9/3/4T 27×0,9/3/4K  34×1,1/2/3T  34×1,1/2/3K  34×1,1/3/4T  34×1,1/3/4K  41×1,3/2/3T  41×1,3/2/3K  41×1,3/3/4T  www.precitool.de 49/883
