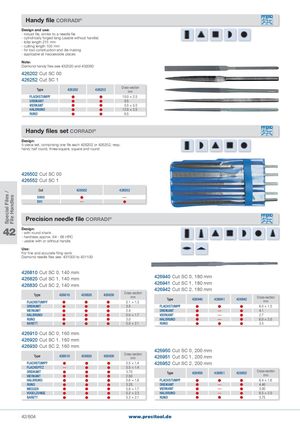

Общий каталог PRECITOOL - страница 809

Special Files / File Handles Handy file CORRADI® Design and use: - robust file, similar to a needle file - cylindrically forged tang (usable without handle) - total length 215 mm - cutting length 105 mm - for tool construction and die making - applicable at inaccessible places Note: Diamond handy files see 432020 and 432060 426202 Cut SC 00 426252 Cut SC 1 Type 426202 426252 Cross-sectionmm FLACHSTUMPF   10.0 × 2.5 DREIKANT    9.5 VIERKANT     5.0 × 5.0 HALBRUND   12.0 × 3.5 RUND    6.5 Handy files set CORRADI® Design: 5-piece set, comprising one file each 426202 or 426252, resp. hand, half round, three-square, square and round 426502 Cut SC 00 426552 Cut SC 1 Cut 426502 426552 SH00  — SH1 —  Precision needle file CORRADI® 42 Design:- with round shank - hardness approx. 64 - 66 HRC - usable with or without handle Use: For fine and accurate filing work Diamond needle files see: 431000 to 431100 426810 Cut SC 0, 140 mm 426820 Cut SC 1, 140 mm 426940 Cut SC 0, 180 mm 426830 Cut SC 2, 140 mm 426941 Cut SC 1, 180 mm 426942 Cut SC 2, 180 mm Type 426810 426820 426830 Cross-sectionmmFLACHSTUMPF5.1 × 1.3Type426940 426941 426942 Cross-sectionmm DREIKANT    3.5 FLACHSTUMPF    6.0 × 1.5 VIERKANT    2.4 DREIKANT  —  4.1 HALBRUND    5.0 × 1.7 VIERKANT  —  2.7 RUND    3.0 HALBRUND  —  6.0 × 2.0 BARETT    5.0 × 2.1 RUND    3.5 426910 Cut SC 0, 160 mm 426920 Cut SC 1, 160 mm 426930 Cut SC 2, 160 mm 426950 Cut SC 0, 200 mm Type 426910 426920 426930 Cross-sectionmm 426951 Cut SC 1, 200 mm FLACHSTUMPF    5.5 × 1.4 426952 Cut SC 2, 200 mm FLACHSPITZ —   5.5 × 1.4 DREIKANT    3.70VIERKANT2.50 Type 426950 426951 426952 Cross-sectionmm HALBRUND    5.6 × 1.8 FLACHSTUMPF    6.4 × 1.6 RUND    3.25 DREIKANT  —  4.40 MESSER    5.8 × 1.7 VIERKANT  —  3.00 VOGELZUNGE    5.2 × 2.3 HALBRUND  —  6.5 × 2.0 BARETT    5.3 × 2.1 RUND    3.75 42/804 www.precitool.de
