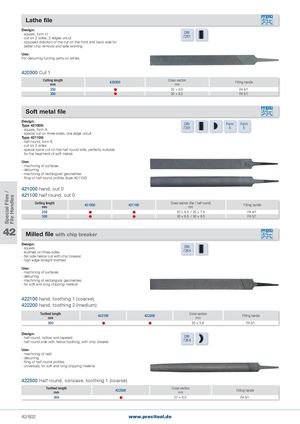

Special Files / File Handles Lathe file Design:- square, form H- cut on 2 sides, 2 edges uncut DIN7261 - opposed direction of the cut on the front and back side for better chip removal and safe working Use: For deburring turning parts on lathes 420300 Cut 1 Cutting lengthmm 420300 Cross-sectionmm Fitting handle 250  25 × 6.0 FH 4/1 300  30 × 6.5 FH 5/1 Soft metal file Design:Type 421000:- square, form A DIN Form Form7261AE - special cut on three sides, one edge uncut Type 421100: - half-round, form E - cut on 2 sides - special spiral cut on the half-round side, perfectly suitable for the treatment of soft metals Use: - machining of surfaces - deburring - machining of rectangular geometries - filing of half round profiles (type 421100) 421000 hand, cut 0 421100 half round, cut 0 Cutting lengthmm 421000 421100 Cross-section (flat / half round)mm Fitting handle 250   25 × 6.0 / 25 × 7.0 FH 4/1 300   30 × 6.5 / 30 × 8.5 FH 5/1 42 Milled file with chip breaker Design:- square- toothed on three sides DIN7264 - flat side helical cut with chip breaker - high edge straight toothed Use: - machining of surfaces - deburring - machining of rectangular geometries - for soft and long chipping material 422100 hand, toothing 1 (coarse) 422200 hand, toothing 2 (medium) Toothed lengthmm 422100 422200 Cross-sectionmm Fitting handle 300   30 × 5.8 FH 5/1 Design:- half-round, hollow and tapered- half round side with helical toothing, with chip breaker DIN7264 Use: - machining of radii - deburring - filing of half-round profiles - universally for soft and long chipping material 422500 Half round, concave, toothing 1 (coarse) Toothed lengthmm 422500 Cross-sectionmm Fitting handle 300  27 × 9.0 FH 5/1 42/802 www.precitool.de
