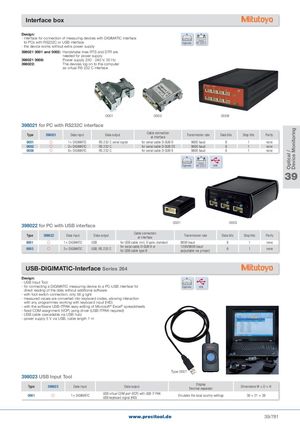

Optical / Device Monitoring Interface box Design: - interface for connection of measuring devices with DIGIMATIC interface to PCs with RS232C or USB interface Digimatic RS 232 C - the device works without extra power supply 398021 0001 and 0002: Handshake lines RTS and DTR are needed for power supply 398021 0008: Power supply 230 - 240 V, 50 Hz 398022: The devices log on to the computer as virtual RS 232 C interface 0001 0002 0008 398021 for PC with RS232C interface Type 398021 Data input Data output Cable connectionat interface Transmission rate Data bits Stop bits Parity 0001  1× DIGIMATIC RS 232 C serial signal for serial cable D-SUB 9 9600 baud 8 1 none 0002  2× DIGIMATIC RS 232 C for serial cable D-SUB 25 9600 baud 8 1 none 0008  8× DIGIMATIC RS 232 C for serial cable D-SUB 9 9600 baud 8 1 none Digimatic RS 232 C USB 39 398022 for PC with USB interface 0001 0003 Type 398022 Data input Data output Cable connectionat interface Transmission rate Data bits Stop bits Parity 0001  1× DIGIMATIC USB for USB cable mini, 5-pole, standard 9600 baud 8 1 none 0003  3× DIGIMATIC USB, RS 232 C for serial cable D-SUB 9 orfor USB cable type B1200/9600 baud(adjustable via jumper)8 1 none USB-DIGIMATIC-Interface Series 264 Design: - USB Input Tool - for connecting a DIGIMATIC measuring device to a PC-USB interface for Digimatic USB direct reading of the data without additional software - with foot switch connection, only 56 g light - measured values are converted into keyboard codes, allowing interaction with any programmes working with keyboard input (HID) - with the software USB-ITPAK easy editing of Microsoft® Excel® spreadsheets - fixed COM assignment (VCP) using driver (USB-ITPAK required) - USB cable cascadable via USB hub) - power supply 5 V via USB, cable length 1 m Type 0001 398023 USB Input Tool Type 398023 Data input Data output DisplayDecimal separator Dimensions W × D × H 0001  1× DIGIMATIC USB virtual COM port (VCP) with USB IT PAKUSB keyboard signal (HID)Emulates the local country settings 38 × 21 × 38 www.precitool.de 39/781
