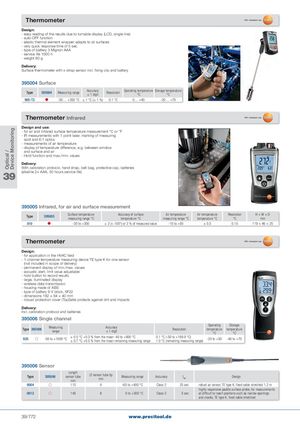

Общий каталог PRECITOOL - страница 777

Optical / Device Monitoring Thermometer Design: - easy reading of the results due to turnable display (LCD, single-line) - auto-OFF function - elastic thermal element wrapper adapts to all surfaces - very quick response time of 5 sec - type of battery 3 Mignon AAA - service life 1000 h - weight 80 g Delivery: Surface thermometer with x-strap sensor incl. fixing clip and battery 395004 Surface Type 395004 Measuring range Accuracy± 1 digitResolutionOperating temperature Storage temperature°C°C 905-T2  -50… +350 °C ± 1 °C (± 1 %) 0.1 °C 0… +40 -20… +70 Thermometer Infrared Design and use: - for air and infrared surface temperature measurement °C or °F - IR measurements with 1 point laser, marking of measuring spot and 6:1 optics - measurements of air temperature - display of temperature difference, e.g. between window and surface and air - Hold function and max./min. values Delivery: With calibration protocol, hand strap, belt bag, protective cap, batteries 39 (alkaline 2× AAA, 50 hours service life) 395005 Infrared, for air and surface measurement Type 395005 Surface temperaturemeasuring range °CAccuracy of surface Air temperature Air temperature Resolution H×W×Dtemperature °Cmeasuring range °Ctemperature °C°Cmm 810  -30 to +300 ± 2 (< 100°) or 2 % of measured value -10 to +50 ± 0.5 0.10 119 × 46 × 25 Thermometer Design: - for application in the HVAC field - 1-channel temperature measuring device TE type K for one sensor (not included in scope of delivery) - permanent display of min./max. values - acoustic alert, limit value adjustable - hold button to record results - large, illuminated display - wireless data transmission - housing made of ABS - type of battery 9 V block, 6F22 - dimensions 182 × 64 × 40 mm - robust protection cover (TopSafe) protects against dirt and impacts Delivery: Incl. calibration protocol and batteries 395006 Single channel Type 395006 Measuringrange Accuracy± 1 digit Operating StorageResolutiontemperaturetemperature°C°C 925  -50 to +1000 °C ± 0.5 °C +0.3 % from the mean -40 to +900 °C± 0.7 °C +0.5 % from the mean remaining measuring range0.1 °C (-50 to +199.9 °C)1.0 °C (remaining measuring range)-20 to +50-40 to +70 395006 Sensor Type 395006 Lengthsensor tubemm sensor tube tipmm Measuring range Accuracy t 99 Design 0004  115 4 -60 to +400 °C Class 2 25 sec robust air sensor, TE type K, fixed cable stretched 1.2 m highly responsive paddle surface probe, for measurements 0012  145 8    0 to +300 °C Class 2   5 sec at difficult to reach positions such as narrow openings and cracks, TE type K, fixed cable stretched 39/772 www.precitool.de
