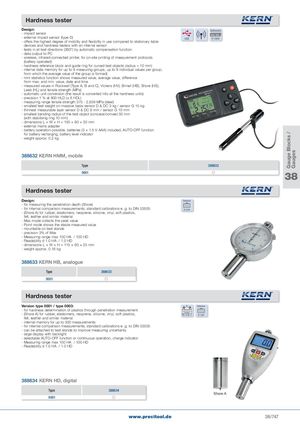

Общий каталог PRECITOOL - страница 752

Gauge Blocks / Gauges Hardness tester Design: Delivered - impact sensor - external impact sensor (type D) USB in case - offers the highest degree of mobility and flexibility in use compared to stationary table devices and hardness testers with an internal sensor - tests in all test directions (360°) by automatic compensation function - data output to PC - wireless, infrared-connected printer, for on-site printing of measurement protocols (battery operated) - hardness reference block and guide ring for curved test objects (radius > 10 mm) - internal data memory for up to 9 measuring groups, up to 9 individual values per group, from which the average value of the group is formed) - mini statistics function shows measured value, average value, difference from max. and min. value, date and time - measured values in Rockwell (Type A, B and C), Vickers (HV), Brinell (HB), Shore (HS), Leeb (HL) and tensile strength (MPa) - automatic unit conversion (the result is converted into all the hardness units) - precision 1 % at 800 HLD (± 6 HDL) - measuring range tensile strength 375 - 2,639 MPa (steel) - smallest test weight on massive basis sensor D & DC 3 kg / sensor G 15 kg - thinnest measurable layer sensor D & DC 8 mm / sensor G 10 mm - smallest bending radius of the test object (concave/convex) 50 mm (with stabilising ring 10 mm) - dimensions L × W × H = 150 × 80 × 30 mm - external mains adapter - battery operation possible, batteries (3 × 1.5 V AAA) included, AUTO-OFF function for battery recharging, battery level indicator - weight approx. 0.2 kg 388632 KERN HMM, mobile Type 388632 0001  38 Hardness tester Design: Delivered - for measuring the penetration depth (Shore) - for internal comparison measurements, standard calibrations e. g. to DIN 53505 in case - (Shore A) for rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar material - Max mode collects the peak value - Point mode shows the stable measured value - mountable on test stands - precision 3% of Max - Measuring range max 100 HA / 100 HD - Readability d 1.0 HA / 1.0 HD - dimensions L × W × H = 115 × 60 × 25 mm - weight approx. 0.16 kg 388633 KERN HB, analogue Type 388633 0001  Hardness tester Version type 0001 / type 0003: Delivered - for hardness determination of plastics through penetration measurement - (Shore A) for rubber, elastomers, neoprene, silicone, vinyl, soft plastics, RS 232 C in case felt, leather and similar material - internal memory for up to 500 measurements - for internal comparison measurements, standard calibrations e. g. to DIN 53505 - can be attached to test stands to improve measuring uncertainty - large display with backlight - selectable AUTO-OFF function or continuous operation, charge indicator - Measuring range max 100 HA / 100 HD - Readability d 1.0 HA / 1.0 HD 388634 KERN HD, digital Type 388634 Shore D Shore A 0001  www.precitool.de 38/747
