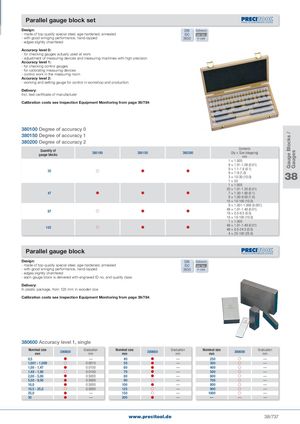

Gauge Blocks / Gauges Parallel gauge block set Design: DIN Delivered - made of top-quality special steel, age-hardened, annealed ISO - with good wringing performance, hand-lapped 3650 in case - edges slightly chamfered Accuracy level 0: - for checking gauges actually used at work - adjustment of measuring devices and measuring machines with high precision Accuracy level 1: - for checking control gauges - for calibrating measuring devices - control work in the measuring room Accuracy level 2: - working and setting gauge for control in workshop and production Delivery: Incl. test certificate of manufacturer Calibration costs see Inspection Equipment Monitoring from page 39/784 380100 Degree of accuracy 0 380150 Degree of accuracy 1 380200 Degree of accuracy 2 Quantity ofgauge blocks 380100 380150 380200 ContentsQty × Size (stepping)mm   1 × 1.005   9 × 1.01-1.09 (0.01) 32      9 × 1.1-1.9 (0.1)  9 × 1-9 (1.0)  3 × 10-30 (10.0)38   1 × 50   1 × 1.005 20 × 1.01-1.20 (0.01) 47      7 × 1.30-1.90 (0.1)   9 × 1.00-9.00 (1.0) 10 × 10-100 (10.0)   9 × 1.001-1.009 (0.001) 87    49 × 1.01-1.49 (0.01)19 × 0.5-9.5 (0.5) 10 × 10-100 (10.0)   1 × 1.005 103    49 × 1.01-1.49 (0.01)49 × 0.5-24.5 (0.5)   4 × 25-100 (25.0) Parallel gauge block Design: DIN Delivered - made of top-quality special steel, age-hardened, annealed ISO - with good wringing performance, hand-lapped 3650 in case - edges slightly chamfered - each gauge block is delivered with engraved ID no. and quality class Delivery: In plastic package, from 125 mm in wooden box Calibration costs see Inspection Equipment Monitoring from page 39/784. 380600 Accuracy level 1, single Nominal sizemm 380600 Graduationmm Nominal sizemm 380600 Graduationmm Nominal sizemm 380600 Graduationmm 0,5  —  40  —  250  — 1,001 - 1,009  0.0010  50  —  300  — 1,00 - 1,47  0.0100  60  —  400  — 1,48 - 1,90  0.0100  70  —  500  — 2,00 - 5,00  0.5000  80  —  600  — 5,50 - 9,50  0.5000  90  —  700  — 10,0  0.5000 100  —  800  — 10,5 - 25,0  0.5000 125  —  900  — 25,0  — 150  — 1000  — 30  — 200  — — — — www.precitool.de 38/737
