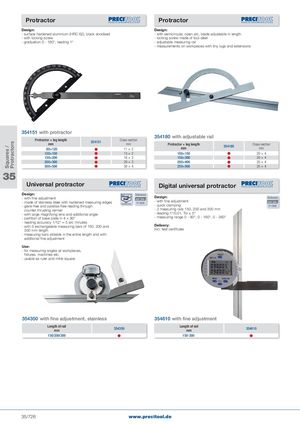

Общий каталог PRECITOOL - страница 731

Squares / Protractors Protractor Protractor Design: Design: - surface hardened aluminium (HRC 62), black anodised - with semicircular, open arc, blade adjustable in length - with locking screw - locking screw made of tool steel - graduation 0 - 180°, reading 1° - adjustable measuring rail - measurements on workpieces with tiny lugs and extensions 354151 with protractor 354180 with adjustable rail Protractor × leg lengthmm 354151 Cross-sectionmm80×12011 × 2 Protractor × leg lengthmm 354180 Cross-sectionmm 120×150  13 × 2 100×150  20 × 4 150×200  16 × 3 150×300  20 × 4 200×300  20 × 3 200×400  20 × 4 300×500  30 × 4 250×500  20 × 4 35 Universal protractor Digital universal protractor Design:- with fine adjustment EDELSTAHL RRostDelivered Design: Delivered - made of stainless steel with hardened measuring edges INOX in case - with fine adjustment - glare-free and parallax-free reading through STAINLESS STEEL - quick clamping in case counter thrusting vernier - 3 measuring rails 150, 200 and 300 mm - with large magnifying lens and additional angle - reading 1“/0,01, Tol ± 5“ - partition of base plate in 4 × 90° - measuring range 0 - 90°, 0 - 180°, 0 - 360° - reading accuracy 1/12° = 5 arc minutes - with 3 exchangeable measuring bars of 150, 200 and Delivery: 300 mm length Incl. test certificate - measuring bars slidable in the entire length and with additional fine adjustment Use: - for measuring angles at workpieces, fixtures, machines etc. - usable as ruler and mitre square 354350 with fine adjustment, stainless 354610 with fine adjustment Length of railmm 354350 Length of railmm 354610 150/200/300  150-300  35/726 www.precitool.de
