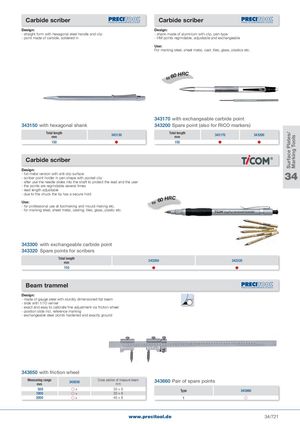

Общий каталог PRECITOOL - страница 726

Surface Plates/ Marking Tools Carbide scriber Carbide scriber Design: Design: - straight form with hexagonal steel handle and clip - shank made of aluminium with clip, pen-type - point made of carbide, soldered-in - HM points regrindable, adjustable and exchangeable Use: For marking steel, sheet metal, cast, tiles, glass, plastics etc. to 60 HRC 343170 with exchangeable carbide point 343150 with hexagonal shank 343200 Spare point (also for RICO markers) Total lengthmm 343150 Total lengthmm 343170 343200 150  150   Carbide scriber Design: - full-metal version with anti-slip surface- scriber point holder in pen shape with pocket clip 34 - after use the needle slides into the shaft to protect the lead and the user - the points are regrindable several times - lead length adjustable - due to the chuck the tip has a secure hold Use: to 60 HRC - for professional use at toolmaking and mould making etc. 342780 - for marking steel, sheet metal, casting, tiles, glass, plastic etc. 343300 with exchangeable carbide point 343320 Spare points for scribers Total lengthmm 343300 343320 150   Beam trammel Design: - made of gauge steel with sturdily dimensioned flat beam - slide with 1/10 vernier - exact and easy to calibrate fine adjustment via friction wheel - position slide incl. reference marking - exchangeable steel points hardened and exactly ground 343650 with friction wheel Measuring rangemm 343650 Cross section of measure beam 343660 Pair of spare pointsmm 500 + 30 × 6 Type 343660 1000 + 30 × 6 2000 + 40 × 8 1  www.precitool.de 34/721
