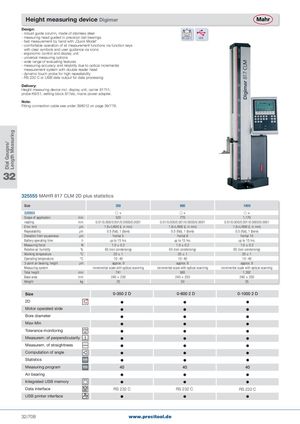

Dial Gauges/ Length Measuring Height measuring device Digimar Design: - robust guide column, made of stainless steel - measuring head guided in precision ball bearings RS 232 C USB - fast measurement by hand with „Quick Mode“ - comfortable operation of all measurement functions via function keys with clear symbols and user guidance via icons - ergonomic control and display unit - universal measuring options - wide range of evaluating features - measuring accuracy and reliability due to optical incremental measurement system with double reader head - dynamic touch probe for high repeatability - RS 232 C or USB data output for data processing Delivery: Height measuring device incl. display unit, carrier 817h1, probe K6/51, setting block 817eb, mains power adapter. Note: Fitting connection cable see under 398012 on page 39/779. 32 325555 MAHR 817 CLM 2D plus statistics Size 350 600 1000 325555 + + + Scope of application mm 520 770 1,170 readingmm 0.01/0.005/0.001/0.0005/0.0001 0.01/0.005/0.001/0.0005/0.0001 0.01/0.005/0.001/0.0005/0.0001 Error limit µm 1.8+L/600 (L in mm) 1.8+L/600 (L in mm) 1.8+L/600 (L in mm) Repeatabilityµm 0.5 (flat), 1 (bore) 0.5 (flat), 1 (bore) 0.5 (flat), 1 (bore) Deviation from squareness µm frontal 5 frontal 6 frontal 10 Battery operating time h up to 15 hrs. up to 15 hrs. up to 15 hrs. Measuring force N 1.0 ± 0.2 1.0 ± 0.2 1.0 ± 0.2 Relative air humidity % 65 (non condensing) 65 (non condensing) 65 (non condensing) Working temperature °C 20 ± 1 20 ± 1 20 ± 1 Operating temperature °C 10 - 40 10 - 40 10 - 40 3-point air bearing, height µm approx. 9 approx. 9 approx. 9 Measuring system incremental scale with optical scanning incremental scale with optical scanning incremental scale with optical scanning Total height mm 741 985 1,392 Base area mm 240 × 250 240 × 250 240 × 250 Weightkg 25 30 35 Size 2D Motor operated slide Bore diameter Max-Min Tolerance monitoring Measurem. of perpendicularity Measurem. of straightness Computation of angle Statistics Measuring program Air bearing Integrated USB memory Data interface RS 232 C RS 232 C RS 232 C USB printer interface 32/708 www.precitool.de
