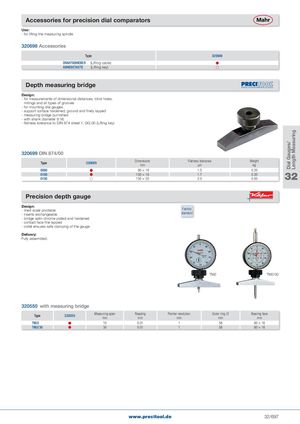

Dial Gauges/ Length Measuring Accessories for precision dial comparators Use: - for lifting the measuring spindle 320698 Accessories Type 320698 DRAHTABHEBER (Lifting cable)  ABHEBETASTE (Lifting key)  Depth measuring bridge Design: - for measurements of dimensional distances, blind holes, millings and all types of grooves - for mounting dial gauges - support surface hardened, ground and finely lapped - measuring bridge burnished - with shank diameter 8 h6 - flatness tolerance to DIN 874 sheet 1, GG 00 (Lifting key) 320699 DIN 874/00 Type 320699 Dimensions Flatness tolerancemmµm Weightkg 0080    80 × 16 1.5 0.20 0100  100 × 16 1.70150150 × 202.0 0.300.50 32 Precision depth gauge Design: - lined scale pivotable Factory - inserts exchangeable standard - bridge satin chrome plated and hardened - contact face fine lapped - collet ensures safe clamping of the gauge Delivery: Fully assembled. TM2 TM2/30 320550 with measuring bridge Type 320550 Measuring spanmm Readingmm Pointer revolutionmm Outer ring mm Bearing facemm TM/2  10 0.01 1 58 80 × 16 TM2/30  30 0.01 1 58 80 × 16 www.precitool.de 32/697
