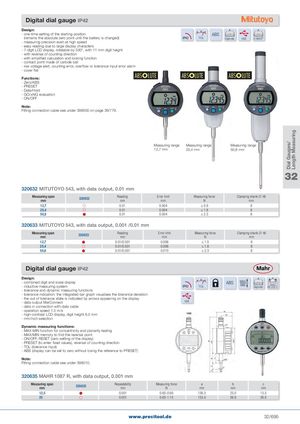

Dial Gauges/ Length Measuring Digital dial gauge IP42 Design: - one-time setting of the starting position ABS (remains the absolute zero point until the battery is changed) IP42 TOL Digimatic USB U-WAVE® - measuring precision even at high speed - easy reading due to large display characters - 7-digit LCD display, rotatable by 330°, with 11 mm digit height - with reversal of counting direction - with simplified calculation and locking function - contact point made of carbide ball - low voltage alert, counting error, overflow or tolerance input error alarm - cover flat Functions: ABSOLUTE ABSOLUTE ABSOLUTE - Zero/ABS - PRESET - Data/Hold - GO/±NG evaluation - ON/OFF Note: Fitting connection cable see under 398000 on page 39/779. Measuring range Measuring range Measuring range 12,7 mm 25,4 mm 50,8 mm 32 320632 MITUTOYO 543, with data output, 0.01 mm Measuring spanmm 320632 Readingmm Error limit Measuring force Clamping shank  h6mmNmm 12,7  0.01 0.004 ≤ 0.9 8 25,4  0.01 0.004 ≤ 1.8 8 50,8  0.01 0.004 ≤ 2.3 8 320633 MITUTOYO 543, with data output, 0.001 /0.01 mm Measuring spanmm 320633 Readingmm Error limit Measuring force Clamping shank  h6mmNmm 12,7  0.01/0.001 0.006 ≤ 1.5 8 25,4  0.01/0.001 0.006 ≤ 1.8 8 50,8  0.01/0.001 0.010 ≤ 2.3 8 Digital dial gauge IP42 Design: - combined digit and scale display- inductive measuring system IP42 TOL ABS MAXMIN Digimatic RS 232 C - tolerance and dynamic measuring functions - tolerance indication: the integrated bar graph visualises the tolerance deviation - the out of tolerance state is indicated by arrows appearing on the display - data output MarConnect USB - data in connection with data cable - operation speed 1.5 m/s - high-contrast LCD display, digit height 8.5 mm - mm/inch selection Dynamic measuring functions: - MAX-MIN function for concentricity and planarity testing - MAX/MIN memory to find the reversal point - ON/OFF, RESET (zero-setting of the display) - PRESET (to enter fixed values), reversal of counting direction - TOL (tolerance input) - ABS (display can be set to zero without losing the reference to PRESET) Note: Fitting connection cable see under 398010. 320635 MAHR 1087 R, with data output, 0.001 mm Measuring spanmm 320635 Repeatability Measuring force a b cmmNmmmmmm 12,5  0.001 0.65-0.90 126.3 23.0 13.5 25  0.001 0.65-1.15 153.4 26.8 26.5 www.precitool.de 32/695
