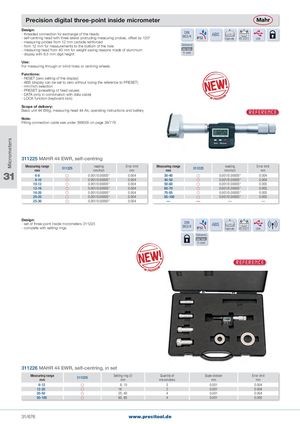

Micrometers Precision digital three-point inside micrometer Design: - threaded connection for exchange of the heads- self-centring head with three lateral protruding measuring probes, offset by 120°DIN863/4IP52ABS Digimatic RS 232 C USB - measuring probes from 12 mm carbide reinforced - from 12 mm for measurements to the bottom of the hole Delivered - measuring head from 40 mm for weight saving reasons made of aluminium - display with 8.5 mm digit height in case Use: For measuring through or blind holes or centring wheels. Functions: - RESET (zero setting of the display) - ABS (display can be set to zero without losing the reference to PRESET) - mm/inch selection - PRESET (presetting of fixed values) - DATA (only in combination with data cable) - LOCK function (keyboard lock) Scope of delivery: Basic unit 44 EWg, measuring head 44 Ak, operating instructions and battery Note: Fitting connection cable see under 398005 on page 39/779 311225 MAHR 44 EWR, self-centring Measuring rangemm 311225 readingmm/inch Error limitmm Measuring rangemm 311225 readingmm/inch Error limitmm 31 6-8 8-10  0.001/0.00005“ 0.0040.001/0.00005“0.00430-40  0.001/0.00005“ 0.00440-500.001/0.00005“0.004 10-12  0.001/0.00005“ 0.004 50-60  0.001/0.00005“ 0.005 12-16  0.001/0.00005“ 0.004 60-70  0.001/0.00005“ 0.005 16-20  0.001/0.00005“ 0.004 70-85  0.001/0.00005“ 0.005 20-25  0.001/0.00005“ 0.004  85-100  0.001/0.00005“ 0.005 25-30  0.001/0.00005“ 0.004 — — — — Design: - set of three-point inside micrometers 311225- complete with setting rings DIN863/4 IP52 ABS Digimatic RS 232 C USB Delivered in case 311226 MAHR 44 EWR, self-centring, in set Measuring rangemm 311226 Setting ring mm Quantity ofmicrometers Scale divisionmm Error limitmm 6-12    8, 10 3 0.001 0.004 12-20  16 2 0.001 0.004 20-50  25, 40 4 0.001 0.004 50-100  60, 85 4 0.001 0.005 31/676 www.precitool.de
