Общий каталог PRECITOOL - страница 678

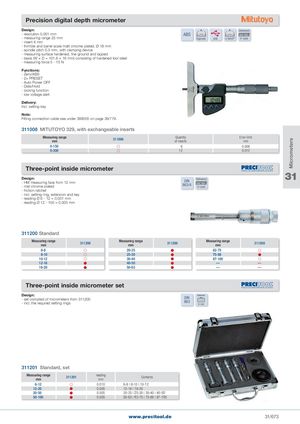

Micrometers Precision digital depth micrometer Design: Delivered - resolution 0.001 mm ABS - measuring range 25 mm Digimatic USB U-WAVE® in case - insert 4 mm - thimble and barrel scale matt chrome-plated, Ø 18 mm - spindle pitch 0.5 mm, with clamping device - measuring surface hardened, fine ground and lapped - basis (W × D = 101.6 × 16 mm) consisting of hardened tool steel - measuring force 5 - 10 N Functions: - Zero/ABS - 2× PRESET - Auto Power OFF - Data/Hold - locking function - low voltage alert Delivery: Incl. setting key Note: Fitting connection cable see under 398005 on page 39/779. 311008 MITUTOYO 329, with exchangeable inserts Measuring rangemm 311008 Quantityof inserts Error limitmm 0-150   6 0.008 0-300  12 0.012 Three-point inside micrometer Design:- HM measuring face from 12 mm- mat chrome-plated DIN Delivered 31863/4in case - friction ratchet - incl. setting ring, extension and key - reading Ø 6 - 12 = 0.001 mm - reading Ø 12 - 100 = 0.005 mm 311200 Standard Measuring rangemm 311200 Measuring rangemm 311200 Measuring rangemm 311200 6-8  20-25  62-75  8-10  25-30  75-88  10-12  30-40  87-100  12-16  40-50  — — 16-20  50-63  — — Three-point inside micrometer set Design: Delivered - set compiled of micrometers from 311200- incl. the required setting rings DIN863 in case 311201 Standard, set Measuring rangemm 311201 readingmm Contents 6-12  0.010 6-8 | 8-10 | 10-12 12-20  0.005 12-16 | 16-20 20-50  0.005 20-25 | 25-30 | 30-40 | 40-50 50-100  0.005 50-63 | 63-75 | 75-88 | 87-100 www.precitool.de 31/673
