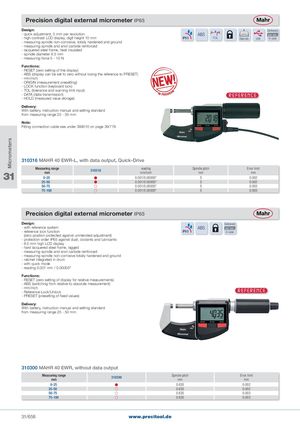

Micrometers Precision digital external micrometer IP65 Design: Delivered - quick adjustment, 5 mm per revolution ABS - high-contrast LCD display, digit height 10 mm IP65 TOL Digimatic USB in case - measuring spindle non-corrosive, totally hardened and ground - measuring spindle and anvil carbide reinforced - lacquered steel frame, heat insulated - spindle diameter 6.5 mm - measuring force 5 - 10 N Functions: - RESET (zero setting of the display) - ABS (display can be set to zero without losing the reference to PRESET) - mm/inch - ORIGIN (measurement presetting) - LOCK function (keyboard lock) - TOL (tolerance and warning limit input) - DATA (data transmission) - HOLD (measured value storage) Delivery: With battery, instruction manual and setting standard from measuring range 25 - 50 mm Note: Fitting connection cable see under 398010 on page 39/779 310316 MAHR 40 EWR-L, with data output, Quick-Drive Measuring range31mm0-25 310316 readingmm/inch0.001/0.00005“ Spindle pitchmm5 Error limit mm0.002 25-50  0.001/0.00005“ 5 0.002 50-75  0.001/0.00005“ 5 0.003 75-100  0.001/0.00005“ 5 0.003 Precision digital external micrometer IP65 Design: Delivered - with reference system ABS - reference lock function IP65 in case (zero position protected against unintended adjustment) - protection order IP65 against dust, coolants and lubricants - 8.5 mm high LCD display - hard lacquered steel frame, lagged - measuring spindle and anvil carbide reinforced - measuring spindle non-corrosive totally hardened and ground - ratchet integrated in drum - with quick mode - reading 0.001 mm / 0.00005" Functions: - RESET (zero setting of display for relative measurements) - ABS (switching from relative to absolute measurement) - mm/inch - Reference-Lock/Unlock - PRESET (presetting of fixed values) Delivery: With battery, instruction manual and setting standard from measuring range 25 - 50 mm 310300 MAHR 40 EWR, without data output Measuring rangemm 310300 Spindle pitchmm Error limitmm 0-25  0.635 0.002 25-50  0.635 0.002 50-75  0.635 0.003 75-100  0.635 0.003 31/658 www.precitool.de
