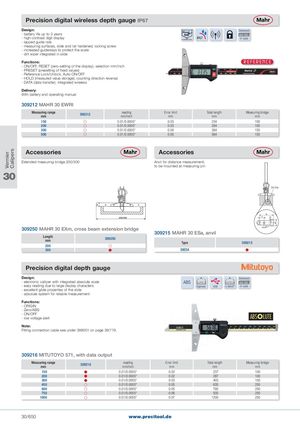

Vernier Calipers ø3 ø4 R2 Precision digital wireless depth gauge IP67 Design:- battery life up to 3 years EDELSTAHL RRost Delivered - high-contrast digit display INOX IP67 in case STAINLESS STEEL - lapped guide rails - measuring surfaces, slide and rail hardened, locking screw - increased guideways to protect the scale - dirt wiper integrated in slide Functions: - ON/OFF, RESET (zero-setting of the display), selection mm/inch - PRESET (presetting of fixed values) - Reference Lock/Unlock, Auto-ON/OFF - HOLD (measured value storage), counting direction reversal - DATA (data transfer), integrated wireless Delivery: With battery and operating manual 309212 MAHR 30 EWRI Measuring rangemm 309212 readingmm/inch Error limit Total length Measuring bridgemmmmmm 150  0.01/0.0005“ 0.03 234 100 200  0.01/0.0005“ 0.03 284 100 300  0.01/0.0005“ 0.04 384 150 500  0.01/0.0005“ 0.05 584 150 Accessories Accessories Extended measuring bridge 200/300 Anvil for distance measurement, to be mounted at measuring pin 30 30 ESa 12 4 ø1,5 309250 MAHR 30 EXm, cross beam extension bridge 309215 MAHR 30 ESa, anvil Lengthmm 309250 Type 309215 200  300  30ESA  Precision digital depth gauge Design: Delivered - electronic calliper with integrated absolute scale ABS - easy reading due to large display characters Digimatic USB U-WAVE® in case - excellent glide properties of the slide - absolute system for reliable measurement Functions: - ORIGIN - Zero/ABS - ON/OFF- low voltage alert ABSOLUTE Note: Fitting connection cable see under 398001 on page 39/779. 309216 MITUTOYO 571, with data output Measuring rangemm 309216 readingmm/inch Error limit Total length Measuring bridgemmmmmm 150  0.01/0.0005“ 0.02  237 100 200  0.01/0.0005“ 0.02  287 100 300  0.01/0.0005“ 0.03  403 100 450  0.01/0.0005“ 0.05  635 250 600  0.01/0.0005“ 0.05  785 250 750  0.01/0.0005“ 0.06  935 250 1000  0.01/0.0005“ 0.07 1200 250 30/650 www.precitool.de
