Общий каталог PRECITOOL - страница 649

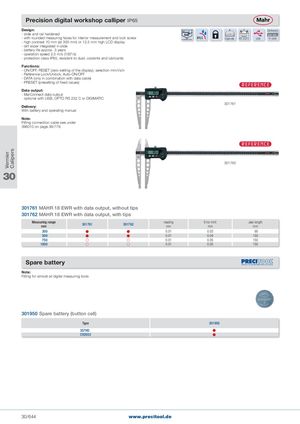

Vernier Calipers Precision digital workshop calliper IP65 Design:- slide and rail hardened EDELSTAHL RRost Delivered - with rounded measuring faces for interior measurement and lock screw INOX IP65STAINLESS STEEL Digimatic RS 232 C USB in case - high contrast 10 mm (at 300 mm) or 12.5 mm high LCD display - dirt wiper integrated in slide - battery life approx. 3 years - operation speed 2.5 m/s (100“/s) - protection class IP65, resistant to dust, coolants and lubricants Functions: - ON/OFF, RESET (zero-setting of the display), selection mm/inch - Reference Lock/Unlock, Auto-ON/OFF - DATA (only in combination with data cable) - PRESET (presetting of fixed values) Data output: - MarConnect data output optional with USB, OPTO RS 232 C or DIGIMATIC 301761 Delivery: With battery and operating manual Note: Fitting connection cable see under 398010 on page 39/779. 301762 30 301761 MAHR 18 EWR with data output, without tips 301762 MAHR 18 EWR with data output, with tips Measuring rangemm 301761 301762 readingmm Error limitmm Jaw lengthmm 300   0.01 0.03  90 500   0.01 0.04 150 750   0.01 0.05 150 1000   0.01 0.05 150 Spare battery Note: Fitting for almost all digital measuring tools 301950 Spare battery (button cell) Type 301950 357HD  CR2032  30/644 www.precitool.de
