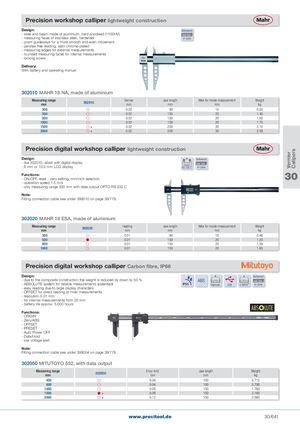

Vernier Calipers Precision workshop calliper lightweight construction Design: Delivered - slide and beam made of aluminium, hard anodised (1100HV) - measuring faces of stainless steel, hardened in case - prism guideways for a more smooth and even movement - parallax free reading, satin chrome-plated - measuring edges for external measurements - rounded measuring faces for internal measurements - locking screw Delivery: With battery and operating manual 302010 MAHR 18 NA, made of aluminium Measuring rangemm 302010 Vernier Jaw length Nibs for inside measurement Weightmmmmmmkg 300  0.02  90 10 0.50 500  0.02 150 20 1.40 800  0.02 150 20 1.60 1000  0.02 150 20 1.75 1500 + 0.02 200 30 2.10 2000 + 0.02 200 30 2.50 Precision digital workshop calliper lightweight construction Design: Delivered - like 302010, albeit with digital display - 6 mm or 10.5 mm LCD display RS 232 C in case Functions:- ON/OFF, reset - zero-setting, mm/inch selection 30 - operation speed 1.5 m/s - only measuring range 300 mm with data output OPTO RS 232 C Note: Fitting connection cable see under 398010 on page 39/779. 302020 MAHR 18 ESA, made of aluminium Measuring rangemm 302020 readingmm Jaw length Nibs for inside measurement Weightmmmmkg 300  0.01  90 10 0.46 500  0.01 150 20 1.20 800  0.01 150 20 1.50 1000  0.01 150 20 1.65 Precision digital workshop calliper Carbon fibre, IP66 Design: Delivered - due to the composite construction the weight is reduced by down to 50 % ABS - ABSOLUTE system for reliable measurements (patented) IP66 Digimatic USB U-WAVE® in case - easy reading due to large display characters - OFFSET for direct reading at inner measurements - resolution 0.01 mm - for internal measurements from 20 mm - battery life approx. 5,000 hours ABSOLUTE Functions: - ORIGIN - Zero/ABS - OFFSET - PRESET - Auto Power OFF - Data/Hold - low voltage alert Note: Fitting connection cable see under 398004 on page 39/779. 302050 MITUTOYO 552, with data output Measuring rangemm 302050 Error limit Jaw length Weightmmmmkg 450  0.04 100 0.715 600  0.04 100 0.790 1000  0.05 150 1.760 1500 + 0.09 150 2.160 2000 + 0.12 150 2.560 www.precitool.de 30/641
