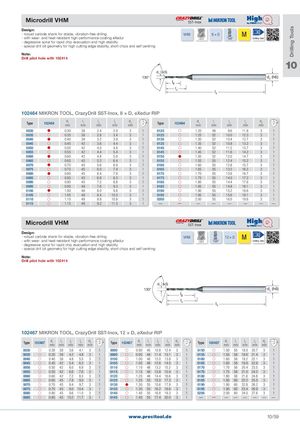

- robust carbide shank for stable, vibration-free drilling VHM 8 × D
- with wear- and heat-resistant high-performance coating eXedur 130° Cutting data
- degressive spiral for rapid chip evacuation and high stability coated - special drill bit geometry for high cutting edge stability, short chips and self centring Note: Drill pilot hole with 102414 10
d (k5) 1 d (h6) 130° 2
4
102464 MIKRON TOOL, CrazyDrill SST-Inox, 8 × D, eXedur RIP
| Type | 102464 | d1 mm | l1 mm | l2 mm | l4 mm | d2 mm | Type | 102464 | d1 mm | l1 mm | l2 mm | l4 mm | d2 mm | ||
| 0030 | | 0�30 | 38 | 2�4 | 2�9 | 3 | 1 | 0120 | | 1�20 | 48 | 9�6 | 11�8 | 3 | 1 |
| 0035 | | 0�35 | 38 | 2�8 | 3�4 | 3 | 1 | 0125 | | 1�25 | 52 | 10�0 | 12�3 | 3 | 1 |
| 0040 | | 0�40 | 38 | 3�2 | 3�9 | 3 | 1 | 0130 | | 1�30 | 52 | 10�4 | 12�7 | 3 | 1 |
| 0045 | | 0�45 | 42 | 3�6 | 4�4 | 3 | 1 | 0135 | | 1�35 | 52 | 10�8 | 13�2 | 3 | 1 |
| 0050 | | 0�50 | 42 | 4�0 | 4�9 | 3 | 1 | 0140 | | 1�40 | 52 | 11�2 | 13�7 | 3 | 1 |
| 0055 | | 0�55 | 42 | 4�4 | 5�4 | 3 | 1 | 0145 | | 1�45 | 52 | 11�6 | 14�2 | 3 | 1 |
| 0060 | | 0�60 | 42 | 4�8 | 5�9 | 3 | 1 | 0150 | | 1�50 | 52 | 12�0 | 14�7 | 3 | 1 |
| 0065 | | 0�65 | 45 | 5�2 | 6�4 | 3 | 1 | 0155 | | 1�55 | 55 | 12�4 | 15�2 | 3 | 1 |
| 0070 | | 0�70 | 45 | 5�6 | 6�9 | 3 | 1 | 0160 | | 1�60 | 55 | 12�8 | 15�7 | 3 | 1 |
| 0075 | | 0�75 | 45 | 6�0 | 7�4 | 3 | 1 | 0165 | | 1�65 | 55 | 13�2 | 16�2 | 3 | 1 |
| 0080 | | 0�80 | 45 | 6�4 | 7�8 | 3 | 1 | 0170 | | 1�70 | 55 | 13�6 | 16�7 | 3 | 1 |
| 0085 | | 0�85 | 45 | 6�8 | 8�3 | 3 | 1 | 0175 | | 1�75 | 55 | 14�0 | 17�2 | 3 | 1 |
| 0090 | | 0�90 | 45 | 7�2 | 8�8 | 3 | 1 | 0180 | | 1�80 | 55 | 14�4 | 17�6 | 3 | 1 |
| 0095 | | 0�95 | 48 | 7�6 | 9�3 | 3 | 1 | 0185 | | 1�85 | 55 | 14�8 | 18�1 | 3 | 1 |
| 0100 | | 1�00 | 48 | 8�0 | 9�8 | 3 | 1 | 0190 | | 1�90 | 55 | 15�2 | 18�6 | 3 | 1 |
| 0105 | | 1�05 | 48 | 8�4 | 10�3 | 3 | 1 | 0195 | | 1�95 | 55 | 15�6 | 19�1 | 3 | 1 |
| 0110 | | 1�10 | 48 | 8�8 | 10�8 | 3 | 1 | 0200 | | 2�00 | 55 | 16�0 | 19�6 | 3 | 1 |
| 0115 | | 1�15 | 48 | 9�2 | 11�3 | 3 | 1 | — | — | — | — | — | — | — | — |
Microdrill VHM
Design: M
- robust carbide shank for stable, vibration-free drilling VHM 12 × D
- with wear- and heat-resistant high-performance coating eXedur 130° Cutting data
coated - degressive spiral for rapid chip evacuation and high stability - special drill bit geometry for high cutting edge stability, short chips and self centring Note:
Drill pilot hole with 102414
d (k5) 1 130°
d (h6)
2
4
102467 MIKRON TOOL, CrazyDrill SST-Inox, 12 × D, eXedur RIP
| Type | 102467 | d1 mm | l1 mm | l2 mm | l4 mm | d2 mm | Type | 102467 | d1 mm | l1 mm | l2 mm | l4 mm | d2 mm | Type | 102467 | d1 mm | l1 mm | l2 mm | l4 mm | d2 mm | |||
| 0030 | | 0�30 | 38 | 3�6 | 4�1 | 3 | 1 | 0090 | | 0�90 | 45 | 10�8 | 12�4 | 3 | 1 | 0150 | | 1�50 | 55 | 18�0 | 20�7 | 3 | 1 |
| 0035 | | 0�35 | 38 | 4�2 | 4�8 | 3 | 1 | 0095 | | 0�95 | 48 | 11�4 | 13�1 | 3 | 1 | 0155 | | 1�55 | 58 | 18�6 | 21�4 | 3 | 1 |
| 0040 | | 0�40 | 38 | 4�8 | 5�5 | 3 | 1 | 0100 | | 1�00 | 48 | 12�0 | 13�8 | 3 | 1 | 0160 | | 1�60 | 58 | 19�2 | 22�1 | 3 | 1 |
| 0045 | | 0�45 | 42 | 5�4 | 6�2 | 3 | 1 | 0105 | | 1�05 | 48 | 12�6 | 14�5 | 3 | 1 | 0165 | | 1�65 | 58 | 19�8 | 22�8 | 3 | 1 |
| 0050 | | 0�50 | 42 | 6�0 | 6�9 | 3 | 1 | 0110 | | 1�10 | 48 | 13�2 | 15�2 | 3 | 1 | 0170 | | 1�70 | 58 | 20�4 | 23�5 | 3 | 1 |
| 0055 | | 0�55 | 42 | 6�6 | 7�6 | 3 | 1 | 0115 | | 1�15 | 48 | 13�8 | 15�9 | 3 | 1 | 0175 | | 1�75 | 58 | 21�0 | 24�2 | 3 | 1 |
| 0060 | | 0�60 | 42 | 7�2 | 8�3 | 3 | 1 | 0120 | | 1�20 | 48 | 14�4 | 16�6 | 3 | 1 | 0180 | | 1�80 | 58 | 21�6 | 24�8 | 3 | 1 |
| 0065 | | 0�65 | 45 | 7�8 | 9�0 | 3 | 1 | 0125 | | 1�25 | 55 | 15�0 | 17�3 | 3 | 1 | 0185 | | 1�85 | 60 | 22�2 | 25�5 | 3 | 1 |
| 0070 | | 0�70 | 45 | 8�4 | 9�7 | 3 | 1 | 0130 | | 1�30 | 55 | 15�6 | 17�9 | 3 | 1 | 0190 | | 1�90 | 60 | 22�8 | 26�2 | 3 | 1 |
| 0075 | | 0�75 | 45 | 9�0 | 10�4 | 3 | 1 | 0135 | | 1�35 | 55 | 16�2 | 18�6 | 3 | 1 | 0195 | | 1�95 | 60 | 23�4 | 26�9 | 3 | 1 |
| 0080 | | 0�80 | 45 | 9�6 | 11�0 | 3 | 1 | 0140 | | 1�40 | 55 | 16�8 | 19�3 | 3 | 1 | 0200 | | 2�00 | 60 | 24�0 | 27�6 | 3 | 1 |
| 0085 | | 0�85 | 45 | 10�2 | 11�7 | 3 | 1 | 0145 | | 1�45 | 55 | 17�4 | 20�0 | 3 | 1 | — | — | — | — | — | — | — | — |
