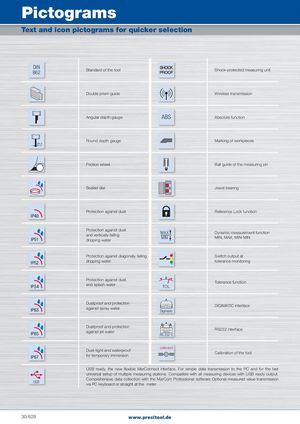

Pictograms Text and icon pictograms for quicker selection DIN862 Standard of the tool Shock-protected measuring unit Double prism guide Wireless transmission Angular depth gauge ABS Absolute function Round depth gauge Marking of workpieces 1,5 Friction wheel Ball guide of the measuring pin Sealed dial Jewel bearing Protection against dust Reference Lock function IP40 IP51 Protection against dustand vertically fallingdripping waterMAXMIN Dynamic measurement functionMIN, MAX, MIN-MIN Protection against diagonally falling Switch output at IP52 dripping water tolerance monitoring IP54 Protection against dustand splash water TOL Tolerance function IP63 Dustproof and protectionagainst spray water DIGIMATIC interfaceDigimatic IP65 Dustproof and protectionagainst jet water RS232 interfaceRS 232 C IP67 Dust-tight and waterproof calibratedfor temporary immersionCalibration of the tool USB ready, the new flexible MarConnect interface. For simple data transmission to the PC and for the fast universal setup of multiple measuring stations. Compatible with all measuring devices with USB ready output. Comprehensive data collection with the MarCom Professional software Optional measured value transmission USB via PC keyboard or straight at the meter 30/628 www.precitool.de
