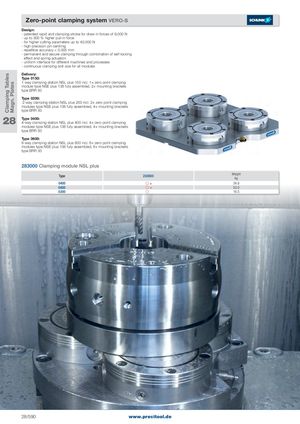

Clamping Tables Magn. Plates Zero-point clamping system VERO-S Design: - patented rapid and clamping stroke for draw-in forces of 9,000 N - up to 300 % higher pull-in force - for higher cutting parameters up to 40.000 N - high-precision pin centring - repetitive accuracy < 0.005 mm - permanent and secure clamping through combination of self-locking effect and spring actuation - uniform interface for different machines and processes - continuous clamping bolt size for all modules Delivery: Type 0150: 1-way clamping station NSL plus 150 incl. 1× zero point clamping module type NSE plus 138 fully assembled, 2× mounting brackets type BRR 50 Type 0200: 2-way clamping station NSL plus 200 incl. 2× zero point clamping modules type NSE plus 138 fully assembled, 4× mounting brackets type BRR 50 28 Type 0400:4-way clamping station NSL plus 400 incl. 4× zero point clamping modules type NSE plus 138 fully assembled, 4× mounting brackets type BRR 50 Type 0600: 6-way clamping station NSL plus 600 incl. 6× zero point clamping modules type NSE plus 138 fully assembled, 6× mounting brackets type BRR 50 283000 Clamping module NSL plus Type 283000 Weightkg 0400 + 34.8 0600 + 53.0 0200  16.5 28/590 www.precitool.de
