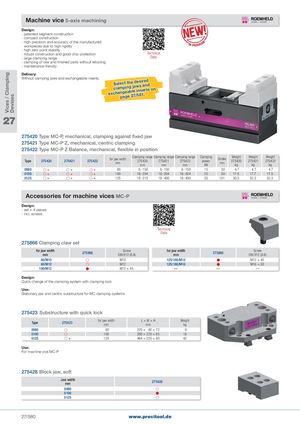

Vices / Clamping Devises Machine vice 5-axis machining Design: - patented segment construction - compact construction - high precision and accuracy of the manufactured workpieces due to high rigidity - high zero point stability - robust construction and good chip protection Technical - large clamping range Data - clamping of raw and finished parts without retooling - maintenance-friendly Delivery: Without clamping jaws and exchangeable inserts. exccShleaalmenpcgaptegintaehgbe2lje7ad/wie5nss8si1era.erntdds on 27 275420 Type MC-P, mechanical, clamping against fixed jaw 275421 Type MC-P Z, mechanical, centric clamping 275422 Type MC-P Z Balance, mechanical, flexible in position Type 275420 275421 275422 for jaw widthmm Clamping range Clamping range Clamping range Clamping275420275421275422powermmmmmmkNStrokemmWeight275420kgWeight275421kgWeight275422kg 0060 + + + 60 6 - 150  6 - 150  6 - 150  15 30 4.7 4.7 4.7 0100 + + + 100 18 - 204  18 - 204  18 - 204  25 50 17.5 17.7 17.5 0125 + + + 125 18 - 215  18 - 400  18 - 400  35 101 30.5 52.3 52.3 Accessories for machine vices MC-P Design: - set = 4 pieces - incl. screws Technical Data 275866 Clamping claw set for jaw widthmm 275866 ScrewDIN 912 (8.8) for jaw widthmm 275866 ScrewDIN 912 (8.8) 60/M10  M10 125/160/M12  M12 × 45 60/M12  M12 125/160/M16  M16 × 50 100/M12  M12 × 45 — — — Design: Quick change of the clamping system with clamping lock Use: Stationary jaw and centric substructure for MC clamping systems 275423 Substructure with quick lock Type 275423 for jaw widthmm L×W×H Weightmmkg 0060  60 225 ×   80 × 72 9 0100  100 260 × 225 × 65 18 0125 + 125 464 × 225 × 80 42 Use: For machine vice MC-P 275428 Block jaw, soft Jaw widthmm 275428 0060  0100  0125  27/580 www.precitool.de
