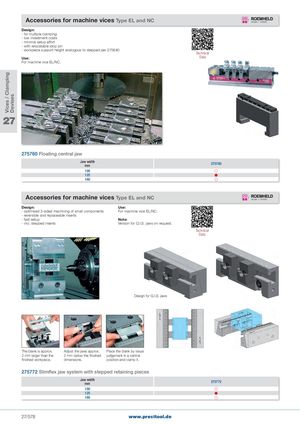

Vices / Clamping Devises Accessories for machine vices Type EL and NC Design: - for multiple clamping - low investment costs - minimal setup effort - with relocatable stop pin - workpiece support height analogous to stepped jaw 275640 Technical Use: Data For machine vice EL/NC. 27 275760 Floating central jaw Jaw widthmm 275760 100  125  160  Accessories for machine vices Type EL and NC Design: Use: - optimised 3-sided machining of small components For machine vice EL/NC. - reversible and replaceable inserts - fast setup Note: - incl. stepped inserts Version for Q.I.S. jaws on request. Technical Data Design for Q.I.S. jaws The blank is approx. Adjust the jaws approx. Place the blank by visual 2 mm larger than the 2 mm below the finished judgement in a central finished workpiece. dimensions. position and clamp it. 275772 Slimflex jaw system with stepped retaining pieces Jaw widthmm 275772 100  125  160  27/578 www.precitool.de
