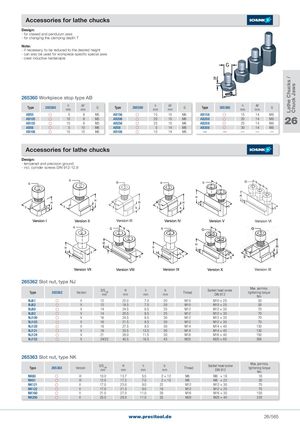

Lathe Chucks / Chuck Jaws Accessories for lathe chucks Design: - for clawed and pendulum jaws - for changing the clamping depth T Note: - if necessary, to be reduced to the desired height - can also be used for workpiece-specific special jaws - crest inductive hardenable 265360 Workpiece stop type AB Type 265360 hmm AFmm G Type 265360 hmm AFmm G Type 265360 hmm AFmm G AB55  5 8 M5 AB156  15 10 M6 AB158  15 14 M8 AB105 AB155 10 8 M5 AB206 158M5AB25620 10 M6 AB208 2510M6AB258 2025 1414 M8M8 26 AB56  5 10 M6 AB58  5 14 M8 AB308  30 14 M8 AB106  10 10 M6 AB108  10 14 M8 — — — — — Accessories for lathe chucks Design: - tempered and precision ground - incl. cylinder screws DIN 912-12.9 Version III Version VI Version XI 265362 Slot nut, type NJ Type 265362 Version S/S1g6mm Hmm hmm bmm Thread Socket head screwDIN 912 Max. permiss.tightening torqueNm NJ61  V 12 22.0  7.0 20 M10 M10 × 25  50 NJ62  V 12 18.5  7.5 20 M10 M10 × 25  50 NJ80  V 14 24.5  8.5 25 M12 M12 × 35  70 NJ82  V 14 20.5  8.5 25 M12 M12 × 30  70 NJ100  V 16 24.5  8.5 30 M12 M12 × 35  70 NJ103  V 16 21.5  8.5 30 M12 M12 × 30  70 NJ120  V 18 27.5  9.5 30 M14 M14 × 40 130 NJ121  V 18 33.5 13.5 30 M14 M14 × 45 130 NJ124  V 21 28.0 11.5 30 M16 M16 × 40 150 NJ152  X 24/22 45.5 16.5 43 M20 M20 × 60 300 265363 Slot nut, type NK Type 265363 Version S/S1g6mm Hmm hmm bmm Thread Socket head screwDIN 912 Max. permiss.tightening torqueNm NK60  VI 10.0 13.7  5.5   2 × 12 M6 M6   × 18 16 NK81  VI 12.0 17.2  7.0   2 × 15 M8 M8   × 22 30 NK121  V 17.0 23.0  9.0 22 M12 M12 × 30 70 NK122  V 17.0 21.5  9.0 19 M12 M12 × 25 70 NK160  V 21.0 27.0 11.0 28 M16 M16 × 35 150 NK200  V 25.5 29.0 11.0 35 M20 M20 × 40 220 www.precitool.de 26/565
