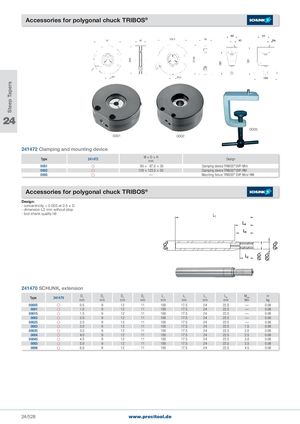

Steep Tapers Accessories for polygonal chuck TRIBOS® 24 0005 0001 0002 241472 Clamping and mounting device Type 241472 W×D×H mm Design 0001    90 ×   87,0 × 35 Clamping device TRIBOS® SVP-Mini 0002  128 × 123.5 × 55 Clamping device TRIBOS® SVP-RM 0005  — Mounting fixture TRIBOS® SVP Mini/-RM Accessories for polygonal chuck TRIBOS® Design: - concentricity < 0.003 at 2.5 × D - dimension L2 mm without stop - tool shank quality h6 241470 SCHUNK, extension Type 241470 D 1mm D 2mm D 3mm D 5mm L 1mm L ²mm L 4mm L 8mm M minNm mkg 00005  0.5 9 12 11 100 17.5 24 22.5 — 0.08 0001  1.0 9 12 11 100 17.5 24 22.5 — 0.08 00015  1.5 9 12 11 100 17.5 24 22.5 — 0.08 0002  2.0 9 12 11 100 17.5 24 22.5 — 0.08 00025  2.5 9 12 11 100 17.5 24 22.5 — 0.08 0003  3.0 9 12 11 100 17.5 24 22.5 1.5 0.08 00035  3.5 9 12 11 100 17.5 24 22.5 2.0 0.08 0004  4.0 9 12 11 100 17.5 24 22.5 2.5 0.08 00045  4.5 9 12 11 100 17.5 24 22.5 3.0 0.08 0005  5.0 9 12 11 100 17.5 24 22.5 3.5 0.08 0006  6.0 9 12 11 100 17.5 24 22.5 4.5 0.08 24/528 www.precitool.de
