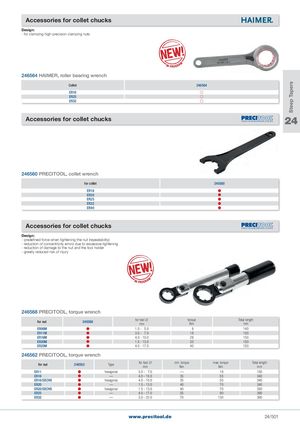

Общий каталог PRECITOOL - страница 506
Навигация
- for clamping high-precision clamping nuts
246564 HAIMER, roller bearing wrench
| Collet | 246564 |
| ER16 | |
| ER25 | |
| ER32 | |
Accessories for collet chucks 24
246560 PRECITOOL, collet wrench
| for collet | 246560 |
| ER16 | |
| ER20 | |
| ER25 | |
| ER32 | |
| ER40 | |
Accessories for collet chucks
Design: - predefined force when tightening the nut (repeatability) - reduction of concentricity errors due to excessive tightening - reduction of damage to the nut and the tool holder - greatly reduced risk of injury
246568 PRECITOOL, torque wrench
| for nut | 246568 | for tool mm | torque Nm | Total length mm |
| ER08M | | 1�0 - 5�0 | 8 | 140 |
| ER11M | | 3�0 - 7�0 | 18 | 150 |
| ER16M | | 4�0 - 10�0 | 28 | 150 |
| ER20M | | 1�5 - 13�0 | 35 | 150 |
| ER25M | | 4�0 - 17�0 | 40 | 150 |
246562 PRECITOOL, torque wrench
| for nut | 246562 | Type | for tool mm | min� torque Nm | max� torque Nm | Total length mm |
| ER11 | | hexagonal | 3�0 - 7�0 | — | 18 | 150 |
| ER16 | | — | 4�0 - 10�0 | 35 | 55 | 340 |
| ER16/SECHS | | hexagonal | 4�0 - 10�0 | 35 | 55 | 340 |
| ER20 | | — | 1�5 - 13�0 | 40 | 70 | 340 |
| ER20/SECHS | | hexagonal | 1�5 - 13�0 | 40 | 70 | 350 |
| ER25 | | — | 4�0 - 17�0 | 55 | 90 | 390 |
| ER32 | | — | 3�0 - 22�0 | 70 | 130 | 395 |
