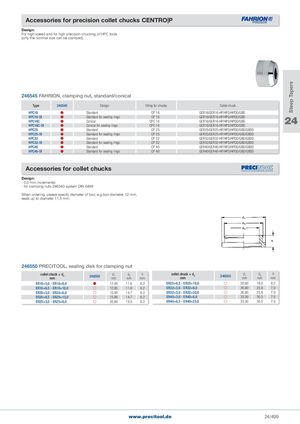

Общий каталог PRECITOOL - страница 504
Навигация
Accessories for precision collet chucks CENTRO|P
For high speed and for high precision chucking of HPC tools (only the nominal size can be clamped).
246545 FAHRION, clamping nut, standard/conical
| Type | 246545 | Design | fitting for chucks | Collet chuck |
| HPC16 | | Standard | CP 16 | GER16/GER16-HP/HPD/HPDD/GBD |
| HPC16-DI | | Standard for sealing rings | CP 16 | GER16/GER16-HP/HPD/HPDD/GBD |
| HPC16C | | Conical | CPC 16 | GER16/GER16-HP/HPD/HPDD/GBD |
| HPC16C-DI | | Conical for sealing rings | CPC 16 | GER16/GER16-HP/HPD/HPDD/GBD |
| HPC25 | | Standard | CP 25 | GER25/GER25-HP/HPD/HPDD/GBD/GBDD |
| HPC25-DI | | Standard for sealing rings | CP 25 | GER25/GER25-HP/HPD/HPDD/GBD/GBDD |
| HPC32 | | Standard | CP 32 | GER32/GER32-HP/HPD/HPDD/GBD/GBDD |
| HPC32-DI | | Standard for sealing rings | CP 32 | GER32/GER32-HP/HPD/HPDD/GBD/GBDD |
| HPC40 | | Standard | CP 40 | GER40/GER40-HP/HPD/HPDD/GBD/GBDD |
| HPC40-DI | | Standard for sealing rings | CP 40 | GER40/GER40-HP/HPD/HPDD/GBD/GBDD |
Accessories for collet chucks
Design: - 0.5 mm incremental - for clamping nuts 246540 system DIN 6499 When ordering, please specify diameter of tool, e.g.tool diameter 12 mm, seals up to diameter 11.5 mm.
246550 PRECITOOL, sealing disk for clamping nut
| collet chuck × d4 mm | 246550 | d1 mm | d3 mm | h mm | collet chuck × d4 mm | 246550 | d1 mm | d3 mm | h mm |
| ER16×3,0 - ER16×6,0 | | 12�85 | 11�6 | 6�2 | ER25×6,5 - ER25×16,0 | | 20�80 | 19�0 | 6�2 |
| ER16×6,5 - ER16×10,0 | | 12�85 | 11�6 | 6�2 | ER32×3,0 - ER32×6,0 | | 26�80 | 23�8 | 7�0 |
| ER20×3,0 - ER20×6,0 | | 15�80 | 14�7 | 6�2 | ER32×3,0 - ER32×20,0 | | 26�80 | 23�8 | 7�0 |
| ER20×6,5 - ER20×13,0 | | 15�80 | 14�7 | 6�2 | ER40×3,0 - ER40×6,0 | | 33�30 | 30�5 | 7�0 |
| ER25×3,0 - ER25×6,0 | | 20�80 | 19�0 | 6�2 | ER40×6,5 - ER40×25,0 | | 33�30 | 30�5 | 7�0 |
