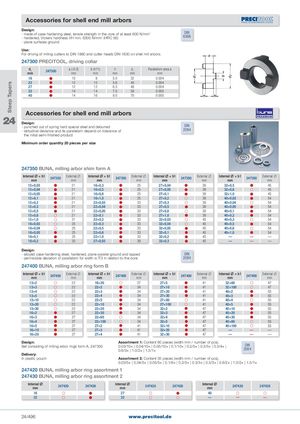

Accessories for shell end mill arbors

- made of case-hardening steel, tensile strength in the core of at least 800 N/mm DIN ² - hardened, Vickers hardness VH min. 6300 N/mm (HRC 56) 6366 ² - plane surfaces ground

Use: For driving of milling cutters to DIN 1880 and cutter heads DIN 1830 on shell mill arbors.

247300 PRECITOOL, driving collar

d1 mm	247300	a (-0�2) mm	b (h11) mm	h mm	d² mm	Parallelism area a mm
16		10	8	5�0	32	0�004
22		12	10	5�6	40	0�004
27		12	12	6�3	48	0�004
32		14	14	7�0	58	0�005
40		14	16	8�0	70	0�005

Accessories for shell end mill arbors

24

Design: - punched out of spring hard special steel and deburred DIN - latitudinal deviance and its parallelism depend on tolerance of 2084 the initial semi-finished product Minimum order quantity 20 pieces per size

247350 BUNA, milling arbor shim form A

Internal× b1	247350	External	Internal× b1	247350	External	Internal× b1	247350	External	Internal× b1	247350	External
mm		mm	mm		mm	mm		mm	mm		mm
13×0,03		21	16×0,3		25	27×0,04		39	32×0,5		45
13×0,04		21	16×0,5		25	27×0,05		39	32×0,6		45
13×0,05		21	16×0,6		25	27×0,1		39	32×1,0		45
13×0,1		21	16×1,0		25	27×0,2		39	40×0,03		54
13×0,2		21	22×0,03		33	27×0,3		39	40×0,04		54
13×0,3		21	22×0,04		33	27×0,5		39	40×0,05		54
13×0,5		21	22×0,05		33	27×0,6		39	40×0,1		54
13×0,6		21	22×0,1		33	27×1,0		39	40×0,2		54
13×1,0		21	22×0,2		33	32×0,03		45	40×0,3		54
16×0,03		25	22×0,3		33	32×0,04		45	40×0,5		54
16×0,04		25	22×0,5		33	32×0,05		45	40×0,6		54
16×0,05		25	22×0,6		33	32×0,1		45	40×1,0		54
16×0,1		25	22×1,0		33	32×0,2		45	—	—	—
16×0,2		25	27×0,03		39	32×0,3		45	—	—	—

Design: - alloyed case-hardening steel, hardened, plane-parallel ground and lapped DIN - permissible deviation of parallelism for width is IT3 in relation to the bore 2084

247400 BUNA, milling arbor ring form B

Internal× b1	247400	External	Internal× b1	247400	External	Internal× b1	247400	External	Internal× b1	247400	External
mm		mm	mm		mm	mm		mm	mm		mm
13×2		22	16×30		27	27×5		41	32×60		47
13×3		22	22×2		34	27×10		41	32×100		47
13×4		22	22×3		34	27×20		41	40×2		55
13×5		22	22×4		34	27×30		41	40×3		55
13×10		22	22×5		34	27×60		41	40×4		55
13×20		22	22×10		34	27×100		41	40×5		55
13×30		22	22×20		34	32×2		47	40×10		55
16×2		27	22×30		34	32×3		47	40×20		55
16×3		27	22×60		34	32×4		47	40×30		55
16×4		27	22×100		34	32×5		47	40×60		55
16×5		27	27×2		41	32×10		47	40×100		55
16×10		27	27×3		41	32×20		47	—	—	—
16×20		27	27×4		41	32×30		47	—	—	—

Design: Assortment 1: Content 60 pieces (width mm / number of pcs),

Set consisting of milling arbor rings form A, 247350 0.03/10× | 0.04/10× | 0.05/10× | 0.1/10× | 0.2/5× | 0.3/5× | 0.5/4× | DIN

0.6/3× | 1.0/2× | 1.5/1× 2084 Delivery: In plastic pouch Assortment 2: Content 35 pieces (width mm / number of pcs), 0.03/5× | 0.04/5× | 0.05/5× | 0.1/6× | 0.2/3× | 0.3/3× | 0.5/3× | 0.6/2× | 1.0/2× | 1.5/1×

247420 BUNA, milling arbor ring assortment 1

247430 BUNA, milling arbor ring assortment 2

Internal mm	247420	247430	Internal mm	247420	247430	Internal mm	247420	247430
16			27			40		
22			32			—	—	—
