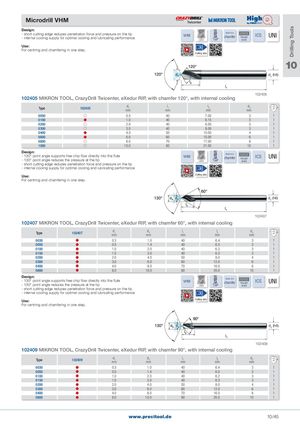

Microdrill VHM Drilling Tools Design: - short cutting edge reduces penetration force and pressure on the tip UNI Blade form VHM chamfer Straight ICS - internal cooling supply for optimal cooling and lubricating performance coated 120° shank Use: For centring and chamfering in one step. Cutting data 10 d2 (h6) 102405 102405 MIKRON TOOL, CrazyDrill Twicenter, eXedur RIP, with chamfer 120°, with internal cooling d1 l1 l2 d2 Type 102405 mm mm mm mm 0050  0.5 40 7.00 3 1 0100  1.0 40 6.15 3 1 0200  2.0 40 6.00 3 1 0300  3.0 40 8.00 3 1 0400  4.0 50 10.00 4 1 0600  6.0 60 15.00 6 1 0800  8.0 70 17.00 8 1 1000  10.0 80 21.00 10 1 Design: UNI Blade form - 130° point angle supports free chip flow directly into the flute VHM ICS chamfer Straight - 130° point angle reduces the pressure at the tip coated 130° shank - short cutting edge reduces penetration force and pressure on the tip - internal cooling supply for optimal cooling and lubricating performance Cutting data Use: For centring and chamfering in one step. d2 (h6) 102407 102407 MIKRON TOOL, CrazyDrill Twicenter, eXedur RIP, with chamfer 60°, with internal cooling d1 d3 l1 l2 d2 Type 102407 mm mm mm mm mm 0030  0.3 1.0 40 6.4 3 1 0050  0.5 1.4 40 6.3 3 1 0100  1.0 2.0 40 6.3 3 1 0150  1.5 3.0 40 6.3 3 1 0200  2.0 4.0 50 8.0 4 1 0300  3.0 6.0 60 12.0 6 1 0400  4.0 8.0 70 16.0 8 1 0600  6.0 10.0 80 20.0 10 1 Design: UNI Blade form - 130° point angle supports free chip flow directly into the flute VHM ICS chamfer Straight - 130° point angle reduces the pressure at the tip coated 130° shank - short cutting edge reduces penetration force and pressure on the tip - internal cooling supply for optimal cooling and lubricating performance Cutting data Use: For centring and chamfering in one step. d2 (h6) 102409 102409 MIKRON TOOL, CrazyDrill Twicenter, eXedur RIP, with chamfer 90°, with internal cooling d1 d3 l1 l2 d2 Type 102409 mm mm mm mm mm 0030  0.3 1.0 40 6.4 3 1 0050  0.5 1.4 40 6.0 3 1 0100  1.0 2.0 40 6.2 3 1 0150  1.5 3.0 40 6.3 3 1 0200  2.0 4.0 50 8.0 4 1 0300  3.0 6.0 60 12.0 6 1 0400  4.0 8.0 70 16.0 8 1 0600  6.0 10.0 80 20.0 10 1 www.precitool.de 10/45
