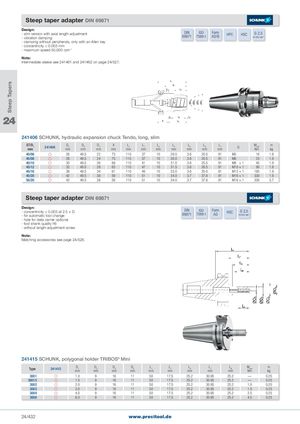

Steep Tapers Steep taper adapter DIN 69871 Design: - slim version with axial length adjustment- vibration damping DIN ISO Form698717388-1AD/BHPCHSC G 2,525.000 min-1 - clamping without peripherals, only with an Allen key - concentricity < 0.003 mm - maximum speed 50,000 rpm-1 Note: Intermediate sleeve see 241461 and 241462 on page 24/527. 24 241406 SCHUNK, hydraulic expansion chuck Tendo, long, slim ST/D1mm 241406 D 2mm D 3mm D X4mmmm L 1mm L L² 3mmmm L 4mm L 5mm L 6mm L 7mm G M mminNmkg 40/06  26 49.5 22 73 110 37 10 29.5 3.6 20.5 91 M5 16 1.8 40/08  28 49.5 24 73 110 37 10 30.0 3.6 20.5 91 M6 23 1.9 40/10  30 49.5 26 69 110 41 10 31.0 3.6 25.5 91 M8   × 1 45 1.9 40/12  32 49.5 28 63 110 47 10 31.5 3.6 30.5 91 M10 × 1 90 1.8 40/16  38 49.5 34 61 110 49 10 33.0 3.6 35.0 91 M12 × 1 185 1.9 40/20  42 49.5 38 59 110 51 10 34.0 3.7 37.8 91 M16 × 1 330 1.9 50/20  42 49.5 38 59 110 51 10 34.0 3.7 37.8 91 M16 × 1 330 3.7 Steep taper adapter DIN 69871 Design: - concentricity < 0.003 at 2.5 × D- for automatic tool change DIN ISO Form698717388-1ADHSC G 2,525.000 min-1 - hole for data carrier optional - tool shank quality h6 - without length adjustment screw Note: Matching accessories see page 24/528. 241415 SCHUNK, polygonal holder TRIBOS® Mini Type 241415 D1mm D2mm D3mm D5mm L1mm L²mm L4mm L7mm L8 MminmmNm mkg 3001  1.0 9 16 11 50 17.5 25.2 30.95 25.2 — 0.25 30015  1.5 9 16 11 50 17.5 25.2 30.95 25.2 — 0.25 3002  2.0 9 16 11 50 17.5 25.2 30.95 25.2 1.0 0.25 3003  3.0 9 16 11 50 17.5 25.2 30.95 25.2 1.5 0.25 3004  4.0 9 16 11 50 17.5 25.2 30.95 25.2 2.5 0.25 3006  6.0 9 16 11 50 17.5 25.2 30.95 25.2 4.5 0.25 24/432 www.precitool.de
