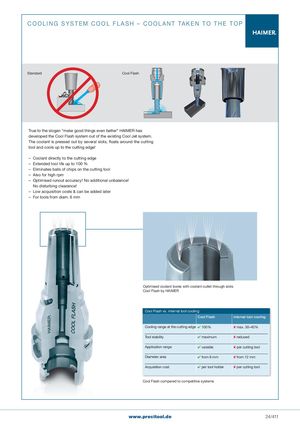

COOLING SYSTEM COOL FLASH – COOLANT TAKEN T O THE TOP
Standard Cool Flash
True to the slogan “make good things even better” HAIMER has
developed the Cool Flash system out of the existing Cool Jet system.
The coolant is pressed out by several slots, floats around the cutting
tool and cools up to the cutting edge!
– Coolant directly to the cutting edge
– Extended tool life up to 100 %
– Eliminates balls of chips on the cutting tool
– Also for high rpm
– Optimised runout accuracy! No additional unbalance!
No disturbing clearance!
– Low acquisition costs & can be added later
– For tools from diam. 6 mm
Optimised coolant bores with coolant outlet through slots Cool Flash by HAIMER
Cool Flash vs. internal tool cooling Cool Flash internal tool cooling Cooling range at the cutting edge ✔ 100 % ✘ max. 30–40 %
| Tool stability | ✔ maximum | ✘ reduced |
| Application range | ✔ variable | ✘ per cutting tool |
| Diameter area | ✔ from 6 mm | ✘ from 12 mm |
| Acquisition cost | ✔ per tool holder | ✘ per cutting tool |
Cool Flash compared to competitive systems
