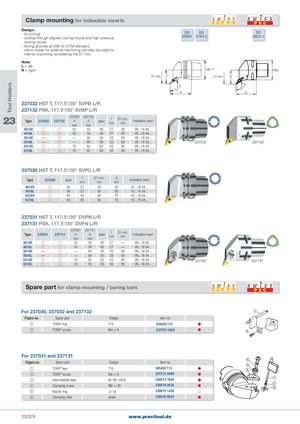

- cooling through aligned cooling nozzle and high-pressure 69893 12164-3 26623-1
cooling nozzle - driving grooves at HSK to ICTM standard - clamp holder for external machining can also be used for internal machining considering the D1 min.
Note: L = left
R = right HST T PSC
D1 min. f D1 min. f
237032 HST T, 117.5°/35° SVPB L/R
237132 PSK, 117.5°/35° SVBP L/R
| 23 | 237032 | 237132 | ||
| f | D1 min� |
| Type | 237032 | 237132 | A | A | taper | Indexable insert | ||
| mm | mm | |||||||
| mm | mm | |||||||
| 4016R | | | 55 | 50 | 40 | 27 | 50 | VB���16 04��� |
| 4016L | | | 55 | 50 | 40 | 27 | 50 | VB���16 04��� |
| 5016R | — | | — | 60 | 50 | 35 | 60 | VB���16 04��� |
| 5016L | — | | — | 60 | 50 | 35 | 60 | VB���16 04��� |
| 6316R | | | 70 | 65 | 63 | 45 | 80 | VB���16 04��� |
| 6316L | | | 70 | 65 | 63 | 45 | 80 | VB���16 04��� |
117.5° 117.5° A A
237032 237132
237030 HST T, 117.5°/35° SVPC L/R
| Type | 237030 | taper | f mm | D1 min� mm | A mm | Indexable insert |
| 4016R | | 40 | 27 | 50 | 55 | VC���16 04��� |
| 4016L | | 40 | 27 | 50 | 55 | VC���16 04��� |
| 6316R | | 63 | 45 | 80 | 70 | VC���16 04��� |
| 6316L | | 63 | 45 | 80 | 70 | VC���16 04��� |
237031 HST T, 117.5°/35° DVPN L/R
237131 PSK, 117.5°/35° DVPN L/R
| Type 4016R | 237031 | 237131 | 237031 A mm 55 | 237131 A mm 50 | taper 40 | f mm 27 | D1 min� mm — | Indexable insert VN���16 04��� | ||
| 4016L | | | 55 | 50 | 40 | 27 | — | VN���16 04��� | ||
| 5016R | — | | — | 60 | 50 | 35 | 60 | VN���16 04��� | ||
| 5016L | — | | — | 60 | 50 | 35 | 60 | VN���16 04��� | ||
| 6316R | | | 70 | 65 | 63 | 45 | 80 | VN���16 04��� | 237031 | 237131 |
| 6316L | | | 70 | 65 | 63 | 45 | 80 | VN���16 04��� |
Spare part for clamp mounting / boring bars
| or 237030 | , 237032 and 237132 | 1 | |||
| Figure no. | Spare part | Design | Item no� | ||
| a | TORX®key | T15 | 505450 T15 | | |
| b | TORX®screw | M4 × 9 | 237272 0409 | | 2 |
| or 237031 Figure no. | and 237131 Spare part | Design | Item no� | 4 5 | |
| a | TORX®key | T15 | 505450 T15 | | 6 |
| b | TORX®screw | M4 × 9 | 237272 0409 | | 1 |
| c | Intermediate layer | for VN��1604�� | 238073 1604 | | |
| d | Clamping screw | M6 × 28 | 238074 0628 | | 2 3 |
| e | Nozzle ring | 14 | 238075 1400 | | |
| f | Clamping claw | small | 238076 0024 | |
