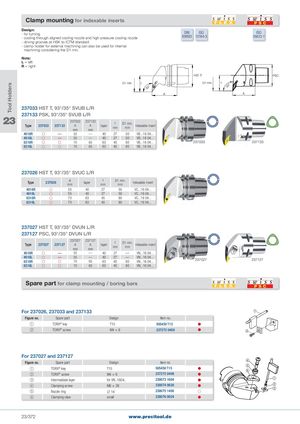

- cooling through aligned cooling nozzle and high-pressure cooling nozzle 69893 12164-3 26623-1
- driving grooves at HSK to ICTM standard - clamp holder for external machining can also be used for internal machining considering the D1 min. Note:
L = left R = right HST T PSC
D1 min. f D1 min. f
93° 93° A A 237033 HST T, 93°/35° SVUB L/R
23 237133 PSK, 93°/35° SVUB L/R
237033 237133
Type 237033 237133 f D1 min�
| A | A | taper | Indexable insert | |||||
| mm | mm | |||||||
| mm | mm | |||||||
| 4016R | | — | 55 | — | 40 | 27 | 50 | VB���16 04��� |
| 4016L | | — | 55 | — | 40 | 27 | 50 | VB���16 04��� |
| 6316R | | | 70 | 65 | 63 | 45 | 80 | 237133 237033 VB���16 04��� |
| 6316L | | | 70 | 65 | 63 | 45 | 80 | VB���16 04��� |
237026 HST T, 93°/35° SVUC L/R
A f D1 min�
Type 237026 taper Indexable insert
| mm | mm | mm | ||||
| 4016R | | 55 | 40 | 27 | 50 | VC���16 04��� |
| 4016L | | 55 | 40 | 27 | 50 | VC���16 04��� |
| 6316R | | 70 | 63 | 45 | 80 | VC���16 04��� |
| 6316L | | 70 | 63 | 45 | 80 | VC���16 04��� |
237027 HST T, 93°/35° DVUN L/R
237127 PSC, 93°/35° DVUN L/R
237027 237127 f D1 min�
| Type | 237027 | 237127 | A | A | taper | Indexable insert | ||
| mm | mm | |||||||
| mm | mm | |||||||
| 4016R | | — | 55 | — | 40 | 27 | — | VN���16 04��� |
| 4016L | | — | 55 | — | 40 | 27 | — | VN���16 04��� |
| 6316R | 70 | 65 | 63 | 45 | 80 | 237127 237027 VN���16 04��� | ||
| 6316L | | | 70 | 65 | 63 | 45 | 80 | VN���16 04��� |
Spare part for clamp mounting / boring bars
| For 237026 | , 237033 and 237133 | ||
| Figure no. | Spare part | Design | Item no� |
| a | TORX®key | T15 | 505450 T15 |
| b | TORX®screw | M4 × 9 | 237272 0409 |
For 237027 and 237127
| Figure no. | Spare part | Design | Item no� | 4 5 |
| a b | TORX®key TORX®screw | T15 M4 × 9 | 505450 T15 237272 0409 | 6 |
| c | Intermediate layer | for VN��1604�� | 238073 1604 | 1 |
| d | Clamping screw | M6 × 28 | 238074 0628 | 2 3 |
| e | Nozzle ring | 14 | 238075 1400 | |
| f | Clamping claw | small | 238076 0024 | |
