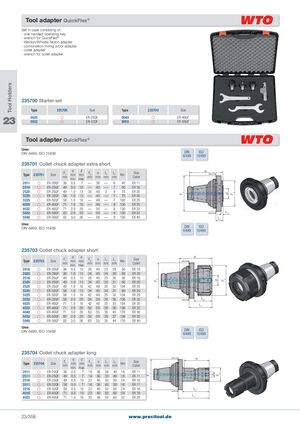

Общий каталог PRECITOOL

Set in case consisting of: - one-handed operating key - wrench for QuickFlex® - Weldon/Whistle-Notch adapter - combination milling arbor adapter - collet adapter - wrench for collet adapter

235700 Starter set

			Type	235700	Size	Type	235700	Size
23			0025		ER-25QF	0040		ER-40QF
			0032		ER-32QF	0050		ER-50QF
		Tool adapter QuickFlex®
	Use:

DIN 6499, ISO 15488	DIN	ISO
	6499	15488
235701 Collet chuck adapter extra short

d d e

			F			F	e	L	L		Size
Type	235701	Size	1	mm	mm	2		²	1
			mm			mm	mm	mm	mm Nm		Collet
				min�	max�
2011		ER-20QF	36	0�5	7	—	36	—	6	40	ER 11
2516		ER-25QF	49	0�5	10	—	40	—	7	50	ER 16
2520		ER-25QF	49	1�0	13	35	45	2	9	75	ER 20
3220		ER-32QF	58	1�0	13	—	45	—	7	75	ER 20
3225		ER-32QF	58	1�0	16	—	48	—	7	100	ER 25
4025		ER-40QF	71	1�0	16	—	48	—	8	100	ER 25
4032		ER-40QF	71	2�0	20	—	50	—	8	130	ER 32
5032		ER-50QF	82	2�0	20	—	50	—	9	130	L ER 32

5040		ER-50QF	82	3�0	26	—	56	—	9	150	ER 40	L
												1
Use:

DIN 6499, ISO 15488 DIN ISO

6499 15488

235703 Collet chuck adapter short

Type	235703	Size	F1 mm	d mm min�	d mm max�	F2 mm	e mm	L² mm	L1 mm	Nm	Size Collet
2016		ER-20QF	36	0�5	10	28	40	23	29	56	ER 16
2020		ER-20QF	36	1�0	13	34	45	24	30	80	ER 20
2516		ER-25QF	49	0�5	10	28	40	23	30	56	ER 16
2520		ER-25QF	49	1�0	13	34	45	24	31	80	ER 20
2525		ER-25QF	49	1�0	16	42	48	25	32	104	ER 25
3220		ER-32QF	58	1�0	13	34	45	24	31	80	ER 20
3225		ER-32QF	58	1�0	16	42	48	25	32	104	ER 25
3232		ER-32QF	58	2�0	20	50	50	28	35	136	ER 32
4025		ER-40QF	71	1�0	16	42	48	25	33	104	ER 25
4032		ER-40QF	71	2�0	20	50	50	28	36	136	ER 32
4040		ER-40QF	71	3�0	26	63	55	35	43	176	ER 40
5032		ER-50QF	82	2�0	20	50	50	28	37	136	ER 32
5040		ER-50QF	82	3�0	26	63	55	35	44	176	ER 40
Use:

DIN 6499, ISO 15488 DIN ISO

6499 15488

235704 Collet chuck adapter long

Type 2011	235704 	Size ER-20QF	F1 mm 36	d mm min� 0�5	d mm max� 7	F2 mm 16	e mm 36	L² mm 34	L1 mm 40	Nm 16	Size Collet ER 11	2 e 1
2511		ER-25QF	49	0�5	7	16	36	33	40	16	ER 11	d F F
2516		ER-25QF	49	0�5	10	22	40	43	50	24	ER 16
3211		ER-32QF	58	0�5	7	16	36	43	50	16	ER 11
3216		ER-32QF	58	0�5	10	22	40	53	60	24	ER 16	L2
4016		ER-40QF	71	0�5	10	22	40	52	60	24	ER 16
4025		ER-40QF	71	1�0	16	35	48	52	60	32	ER 25	L1
