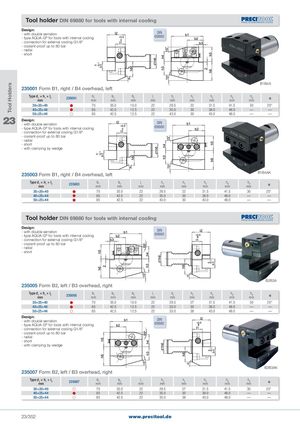

Tool Holders Tool holder DIN 69880 for tools with internal cooling Design: - with double serration DIN - type AQUA-G® for tools with internal cooling 69880 - connection for external cooling G1/8" - coolant-proof up to 80 bar - radial - short B1B4A 235001 Form B1, right / B4 overhead, left Type d1 × h1 × l2mm 235001 b1mm b2mm b3mm l1mm h3mm h4mm h5mm h6mm h8mm α 30×20×40  70 35.0 10.0 22 29.5 22 31.5 41.5 30 25° 40×25×44  85 42.5 12.5 22 35.0 30 38.0 48.0 — — 50×25×44  85 42.5 12.5 22 43.0 30 43.0 48.0 — — 23 Design:- with double serration- type AQUA-G® for tools with internal cooling DIN69880 - connection for external cooling G1/8" - coolant-proof up to 80 bar - radial - short - with clamping by wedge 235003 Form B1, right / B4 overhead, left B1B4AK Type d1 × h1 × l2mm 235003 b1mm b2mm l1mm h3mm h4mm h5mm h6mm h8mm α 30×20×40  70 35.0 22 29.5 22 31.5 41.5 30 25° 40×25×44  85 42.5 22 35.0 30 38.0 48.0 — — 50×25×44  85 42.5 22 43.0 30 43.0 48.0 — — Tool holder DIN 69880 for tools with internal cooling Design: - with double serration- type AQUA-G® for tools with internal cooling DIN69880 - connection for external cooling G1/8" - coolant-proof up to 80 bar - radial - short B2B3A 235005 Form B2, left / B3 overhead, right Type d1 × h1 × l2mm 235005 b1mm b2mm b3mm l1mm h3mm h4mm h5mm h6mm h8mm α 30×20×40  70 35.0 10.0 22 29.5 27 31.5 41.5 30 25° 40×25×44  85 42.5 12.5 22 35.0 30 38.0 48.0 — — 50×25×44  85 42.5 12.5 22 35.0 38 43.0 48.0 — — Design: - with double serration DIN - type AQUA-G® for tools with internal cooling 69880 - connection for external cooling G1/8" - coolant-proof up to 80 bar - radial - short - with clamping by wedge B2B3AK 235007 Form B2, left / B3 overhead, right Type d1 × h1 × l2mm 235007 b 1mm b 2mm l 1mm h 3mm h 4mm h 5mm h 6mm h 8mm α 30×20×40  70 35.0 22 29.5 27 31.5 41.5 30 25° 40×25×44  85 42.5 22 35.0 30 38.0 48.0 — — 50×25×44  85 42.5 22 35.0 38 43.0 48.0 — — 23/352 www.precitool.de
