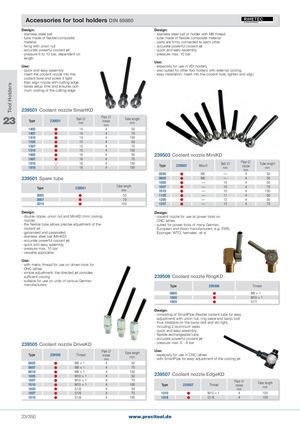

Accessories for tool holders DIN 69880
| - stainless steel ball | - stainless steel ball or holder with M6 thread |
| - tube made of flexible composite | - tube made of flexible composite material |
| material | - parts are firmly connected to each other |
| - fixing with union nut | - accurate powerful coolant jet |
| - accurate powerful coolant jet | - quick and easy assembly |
| - pressure 6 to 10 bar, dependent on | - pressure max. 10 bar |
| length | |
| Use: | |
| Use: | - especially for use in VDI holders |
| - quick and easy assembly | - also suited for other tool holders with external cooling |
| - insert the coolant nozzle into the | - easy installation: insert into the coolant hole, tighten and align |
coolant bore and screw it tight - then align nozzle with cutting edge - saves setup time and ensures opti- mum cooling of the cutting edge
239501 Coolant nozzle SmartKD
| Type | 239501 | Ball mm | Pipe inside mm | Tube length mm |
| 1405 | | 14 | 4 | 50 |
| 1407 | | 14 | 4 | 70 |
| 1410 | | 14 | 4 | 100 |
| 1505 | | 15 | 4 | 50 |
| 1507 | | 15 | 4 | 70 |
| 1510 | | 15 | 4 | 100 |
| 1605 | | 16 | 4 | 50 |
| 1607 | | 16 | 4 | 70 |
| 1610 | | 16 | 4 | 100 |
| 1810 | | 18 | 4 | 100 |
| Type | 239503 | Mount | Ball mm | Pipe inside mm | Tube length mm |
| 0505 | | M5 | — | 4 | 50 |
| 0605 | | M6 | — | 4 | 50 |
| 1005 | | — | 10 | 4 | 50 |
| 1007 | | — | 10 | 4 | 70 |
| 1010 | | — | 10 | 4 | 100 |
| 1105 | | — | 11 | 4 | 50 |
| 1205 | | — | 12 | 4 | 50 |
| 1207 | | — | 12 | 4 | 70 |
| Type | 239501 | Tube length mm |
| 3005 | | 50 |
| 3007 | | 70 |
| 3010 | | 100 |
| Design: | Design: |
| - double nipple, union nut and MiniKD (mini cooling | - coolant nozzle for use at power tools on |
| nozzle) | CNC lathes |
| - the flexible tube allows precise adjustment of the | - suited for power tools of many German, |
| coolant jet | European and Asian manufacturers, e.g. EWS, |
| - galvanised and passivated | Eppinger, WTO, heimatec et al |
- stainless steel ball (MiniKD) - accurate powerful coolant jet - quick and easy assembly - pressure max. 10 bar
- versatile applicable
Use: - with metric thread for use on driven tools for CNC lathes - simple adjustment; the directed jet provides
sufficient cooling 239506 Coolant nozzle RingKD
- suitable for use on units of various German
| Type | 239506 | Thread |
| 0800 | | M8 × 1 |
| 1000 | | M10 × 1 |
| 1800 | | G1/1 |
Design: - consisting of SmartPipe (flexible coolant tube for easy adjustment) with union nut, ring piece and banjo bolt - thus rotatable on the banjo bolt and still tight, including 2 aluminium seals - quick and easy assembly - flexible exchangeable tube - accurate powerful coolant jet 239505 Coolant nozzle DriveKD - pressure max. 6 - 8 bar
| Type | 239505 | Thread | Pipe inside mm | Tube length mm |
| 0805 | | M8 × 1 | 4 | 50 |
| 0807 | | M8 × 1 | 4 | 70 |
| 0810 | | M8 × 1 | 4 | 100 |
| 1005 | | M10 × 1 | 4 | 50 |
| 1007 | | M10 × 1 | 4 | 70 |
| 1010 | | M10 × 1 | 4 | 100 |
| 1805 | | G1/8 | 4 | 50 |
| 1807 | | G1/8 | 4 | 70 |
| 1810 | | G1/8 | 4 | 100 |
| Type | 239507 | Thread | Pipe inside mm | Tube length mm |
| 1010 | | M10 × 1 | 4 | 100 |
| 1818 | | G1/8 | 4 | 100 |
