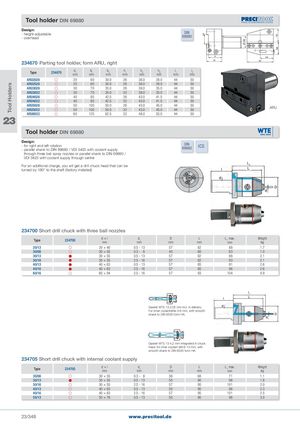

- height-adjustable DIN - overhead 69880
234670 Parting tool holder, form ARU, right
| Type | 234670 | d1 mm | b1 mm | b2 mm | h1 mm | h5 mm | h6 mm | l1 mm | l2 mm | |
| ARU2026 | | 20 | 60 | 30�0 | 26 | 36�0 | 28�0 | 44 | 50 | |
| ARU2526 | | 25 | 60 | 30�0 | 26 | 36�0 | 28�0 | 44 | 50 | |
| ARU3026 | | 30 | 70 | 35�0 | 26 | 38�0 | 35�0 | 44 | 50 | |
| ARU3032 | | 30 | 70 | 35�0 | 32 | 38�0 | 35�0 | 44 | 50 | |
| ARU4026 | | 40 | 85 | 42�5 | 26 | 43�0 | 41�5 | 44 | 50 | |
| ARU4032 | | 40 | 85 | 42�5 | 32 | 43�0 | 41�5 | 44 | 50 | |
| ARU5026 | | 50 | 100 | 50�0 | 26 | 43�0 | 45�0 | 44 | 50 | |
| ARU5032 | | 50 | 100 | 50�0 | 32 | 43�0 | 45�0 | 44 | 50 | ARU |
| ARU6032 | | 60 | 125 | 62�5 | 32 | 48�0 | 55�0 | 44 | 50 |
| 23 | ARU6032 | | 60 | 125 | 62�5 | 32 | 48�0 | 55�0 | 44 | 50 | |
| Tool holder DIN 69880 | |||||||||||
| Design: |
- for right and left rotation DIN ICS
- parallel shank to DIN 69880 / VDI 3425 with coolant supply 69880 through three ball spray nozzles or parallel shank to DIN 69880 / VDI 3425 with coolant supply through centre For an additional charge, you will get a drill chuck head that can be
turned by 180° to the shaft (factory-installed)
234700 Short drill chuck with three ball nozzles
| Type | 234700 | d × l mm | d1 mm | D mm | L mm | L1max� mm | Weight kg |
| 20/13 | | 20 × 40 | 0�5 - 13 | 57 | 82 | 88 | 1�7 |
| 30/08 | | 30 × 55 | 0�3 - 8 | 40 | 60 | 63 | 1�0 |
| 30/13 | | 30 × 55 | 0�5 - 13 | 57 | 82 | 88 | 2�1 |
| 30/16 | | 30 × 55 | 2�5 - 16 | 57 | 82 | 93 | 2�1 |
| 40/13 | | 40 × 63 | 0�5 - 13 | 57 | 85 | 91 | 2�6 |
| 40/16 | | 40 × 63 | 2�5 - 16 | 57 | 85 | 96 | 2�6 |
| 60/16 | | 60 × 94 | 2�5 - 16 | 57 | 93 | 104 | 4�9 |
Gasket WTE 13 2,05 mm incl. in delivery. For inner coolantdrills 3-6 mm, with smooth shank to DIN 6535 form HA.
Gasket WTE 13 4,2 mm integrated in chuck head. for inner coolant drill 6-13 mm, with smooth shank to DIN 6535 form HA.
234705 Short drill chuck with internal coolant supply
| Type | 234705 | d × l mm | d1 mm | D mm | L mm | L1max� mm | Weight kg |
| 30/08 | | 30 × 55 | 0�3 - 8 | 36 | 68 | 71 | 1�1 |
| 30/13 | | 30 × 55 | 0�5 - 13 | 50 | 90 | 96 | 1�8 |
| 30/16 | | 30 × 55 | 2�5 - 16 | 57 | 95 | 101 | 2�0 |
| 40/13 | | 40 × 63 | 0�5 - 13 | 50 | 90 | 96 | 2�3 |
| 40/16 | | 40 × 63 | 2�5 - 16 | 57 | 95 | 101 | 2�5 |
| 50/13 | | 50 × 78 | 0�5 - 13 | 50 | 90 | 96 | 3�0 |
