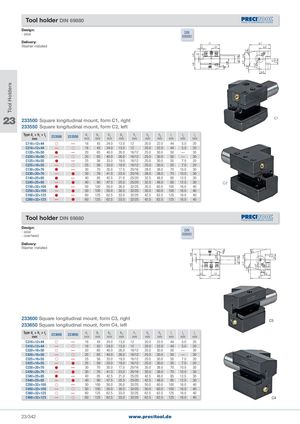

Tool Holders Tool holder DIN 69880 Design:- axial DIN69880 Delivery: Washer installed 23 233500 Square longitudinal mount, form C1, right C1 233550 Square longitudinal mount, form C2, left Type d1 × h1 × l2mm 233500 233550 d1mm b1mm b2mm b3mm h1mm h5 h6 l1 l2 l3mmmmmmmmmm C116×12×44  — 16 43 24.0 13.0 12 20.0 22.0 44  5.0 20 C216×12×44 —  16 43 24.0 13.0 12 20.0 22.0 44  5.0 20 C120×16×50  — 20 65 40.0 26.0 16/12 25.0 30.0 50 — 30 C220×16×50 —  20 65 40.0 26.0 16/12 25.0 30.0 50 — 30 C125×16×55  — 25 58 33.0 19.0 16/12 25.0 30.0 55  7.0 20 C225×16×55 —  25 58 33.0 19.0 16/12 25.0 30.0 55  7.0 20 C130×20×70  — 30 70 35.0 17.0 20/16 28.0 38.0 70 10.0 30 C230×20×70 —  30 76 41.0 23.0 20/16 28.0 38.0 70 10.0 30 C140×25×85  — 40 85 42.5 21.0 25/20 32.5 48.0 85 12.5 30 C240×25×85 —  40 90 47.5 25.5 25/20 32.5 48.0 85 12.5 30 C2 C150×32×100  — 50 100 50.0 26.0 32/25 35.0 60.0 100 16.0 40 C250×32×100 —  50 105 55.0 30.5 32/25 35.0 60.0 100 16.0 40 C160×32×125  — 60 125 62.5 33.0 32/25 42.5 62.5 125 16.0 40 C260×32×125 —  60 125 62.5 33.0 32/25 42.5 62.5 125 16.0 40 Tool holder DIN 69880 Design:- axial- overhead DIN69880 Delivery: Washer installed 233600 Square longitudinal mount, form C3, right C3 233650 Square longitudinal mount, form C4, left Type d1 × h1 × l2mm 233600 233650 d1mm b1mm b2mm b3mm h1mm h5 h6 l1 l2 l3mmmmmmmmmm C316×12×44  — 16 43 24.0 13,0 12 20.0 22.0 44  5.0 20 C416×12×44 —  16 43 24.0 13,0 12 20.0 22.0 44  5.0 20 C320×16×50  — 20 65 40.0 26,0 16/12 25.0 30.0 50 — 30 C420×16×50 —  20 65 40.0 26,0 16/12 25.0 30.0 50 — 30 C325×16×55  — 25 58 33.0 19,0 16/12 25.0 30.0 55  7.0 20 C425×16×55 —  25 58 33.0 19,0 16/12 25.0 30.0 55  7.0 20 C330×20×70  — 30 70 35.0 17,0 20/16 35.0 38.0 70 10.0 30 C430×20×70 —  30 76 41.0 23,0 20/16 35.0 38.0 70 10.0 30 C340×25×85  — 40 85 42.5 21,0 25/20 42.5 48.0 85 12.5 30 C440×25×85 —  40 90 47.5 25.5 25/20 42.5 48.0 85 12.5 30 C350×32×100  — 50 100 50.0 26,0 32/25 50.0 60.0 100 16.0 40 C450×32×100 —  50 105 55.0 30.5 32/25 50.0 60.0 100 16.0 40 C360×32×125  — 60 125 62.5 33,0 32/25 62.5 62.5 125 16.0 40 C460×32×125 —  60 125 62.5 33,0 32/25 62.5 62.5 125 16.0 40 C4 23/342 www.precitool.de
