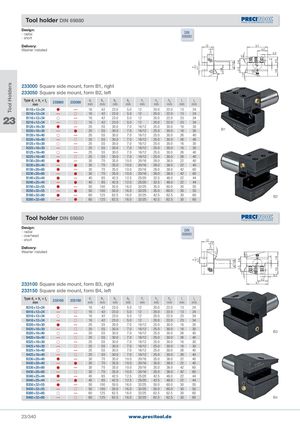

Tool Holders Tool holder DIN 69880 Design:- radial- short DIN69880 Delivery: Washer installed 233000 Square side mount, form B1, right 233050 Square side mount, form B2, left Type d1 × h1 × l2mm 233000 233050 d1mm b1mm b2mm b3mm h1mm h5 h6 l1 l2mmmmmmmm B116×12×24  — 16 42 23.0  5.0 12 20.0 22.0 13 24 B216×12×24 —  16 42 23.0  5.0 12 20.0 22.0 13 24 23 B116×12×34B216×12×34— — 16 42 23.0  5.0 12 20.0 22.0 23 34164223.0 5.01220.022.02334 B120×16×30  — 20 55 30.0  7.0 16/12 25.0 30.0 16 30 B220×16×30 —  20 55 30.0  7.0 16/12 25.0 30.0 16 30 B1 B120×16×40  — 20 55 30.0  7.0 16/12 25.0 30.0 26 40 B220×16×40 —  20 55 30.0  7.0 16/12 25.0 30.0 26 40 B125×16×30  — 25 55 30.0  7.0 16/12 25.0 30.0 16 30 B225×16×30 —  25 55 30.0  7.0 16/12 25.0 30.0 16 30 B125×16×40  — 25 55 30.0  7.0 16/12 25.0 30.0 26 40 B225×16×40 —  25 55 30.0  7.0 16/12 25.0 30.0 26 40 B130×20×40  — 30 70 35.0 10.0 20/16 28.0 38.0 22 40 B230×20×40 —  30 70 35.0 10.0 20/16 28.0 38.0 22 40 B130×20×60  — 30 70 35.0 10.0 20/16 28.0 38.0 42 60 B230×20×60 —  30 70 35.0 10.0 20/16 28.0 38.0 42 60 B140×25×44  — 40 85 42.5 12.5 25/20 32.5 48.0 22 44 B240×25×44 —  40 85 42.5 12.5 25/20 32.5 48.0 22 44 B150×32×55  — 50 100 50.0 16.0 32/25 35.0 60.0 30 55 B250×32×55 —  50 100 50.0 16.0 32/25 35.0 60.0 30 55 B160×32×60  — 60 125 62.5 16.0 32/25 42.5 62.5 30 60 B2 B260×32×60 —  60 125 62.5 16.0 32/25 42.5 62.5 30 60 Tool holder DIN 69880 Design:- radial- overhead DIN69880 - short Delivery: Washer installed 233100 Square side mount, form B3, right 233150 Square side mount, form B4, left Type d1 × h1 × l2mm 233100 233150 d1mm b1mm b2mm b3mm h1mm h5 h6 l1 l2mmmmmmmm B316×12×24  — 16 42 23.0  5.0 12 20.0 22.0 13 24 B416×12×24 —  16 42 23.0  5.0 12 20.0 22.0 13 24 B316×12×34  — 16 42 23.0  5.0 12 20.0 22.0 23 34 B416×12×34 —  16 42 23.0  5.0 12 20.0 22.0 23 34 B320×16×30  — 20 55 30.0  7.0 16/12 25.0 30.0 16 30 B420×16×30 —  20 55 30.0  7.0 16/12 25.0 30.0 16 30 B320×16×40  — 20 55 30.0  7.0 16/12 25.0 30.0 26 40 B3 B420×16×40 —  20 55 30.0  7.0 16/12 25.0 30.0 26 40 B325×16×30  — 25 55 30.0  7.0 16/12 25.0 30.0 16 30 B425×16×30 —  25 55 30.0  7.0 16/12 25.0 30.0 16 30 B325×16×40  — 25 55 30.0  7.0 16/12 25.0 30.0 26 40 B425×16×40 —  25 55 30.0  7.0 16/12 25.0 30.0 26 40 B330×20×40  — 30 70 35.0 10.0 20/16 35.0 38.0 22 40 B430×20×40 —  30 70 35.0 10.0 20/16 35.0 38.0 22 40 B330×20×60  — 30 70 35.0 10.0 20/16 35.0 38.0 42 60 B430×20×60 —  30 70 35.0 10.0 20/16 35.0 38.0 42 60 B340×25×44  — 40 85 42.5 12.5 25/20 42.5 48.0 22 44 B440×25×44 —  40 85 42.5 12.5 25/20 42.5 48.0 22 44 B350×32×55  — 50 100 50.0 16.0 32/25 50.0 60.0 30 55 B450×32×55 —  50 100 50.0 16.0 32/25 50.0 60.0 30 55 B360×32×60  — 60 125 62.5 16.0 32/25 62.5 62.5 30 60 B460×32×60 —  60 125 62.5 16.0 32/25 62.5 62.5 30 60 B4 23/340 www.precitool.de
