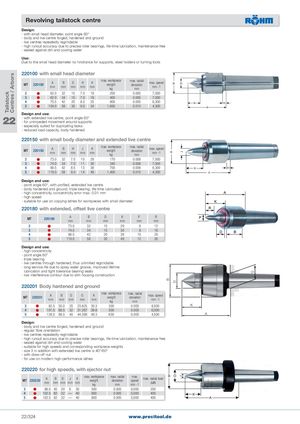

Revolving tailstock centre
- with small head diameter, point angle 60° - body and live centre forged, hardened and ground - live centres repeatedly regrindable - high runout accuracy due to precise roller bearings, life-time lubrication, maintenance-free - sealed against dirt and cooling water
Use: Due to the small head diameter no hindrance for supports, steel holders or turning tools
220100 with small head diameter
| MT | 220100 | A mm | B mm | D mm | H mm | K mm | max� workpiece weight kg | max� radial deviation mm | max� speed min -1 |
| 2 | | 62�0 | 32 | 15 | 7�0 | 18 | 200 | 0�005 | 7,000 |
| 3 | | 62�0 | 34 | 15 | 7�0 | 18 | 400 | 0�005 | 7,000 |
| 4 | | 75�5 | 42 | 20 | 8�5 | 25 | 800 | 0�005 | 6,300 |
| 5 | | 104�0 | 58 | 30 | 9�0 | 34 | 1,600 | 0�010 | 4,300 |
22 Design and use: - with extended live centre, point angle 60° - for unimpeded movement around supports - especially suited for duplicating tasks - reduced load capacity, body hardened
220150 with small body diameter and extended live centre
| MT | 220150 | A mm | B mm | H mm | J mm | K mm | max� workpiece weight kg | max� radial deviation mm | max� speed min -1 | J B | |
| 2 | | 73�0 | 32 | 7�0 | 10 | 29 | 170 | 0�008 | 7,000 | ||
| 3 | | 74�0 | 34 | 7�0 | 11 | 30 | 340 | 0�008 | 7,000 | ||
| 4 | | 88�5 | 42 | 8�5 | 13 | 38 | 700 | 0�008 | 6,300 | K | H |
| 5 | | 119�0 | 58 | 9�0 | 14 | 49 | 1,400 | 0�010 | 4,300 | A |
Design and use: - point angle 60°, with profiled, extended live centre - body hardened and ground, triple bearing, life-time lubricated - high concentricity, concentricity error max. 0.01 mm - high speed - suitable for use on copying lathes for workpieces with small diameter
220180 with extended, offset live centre
| MT | 220180 | A mm | B mm | D mm | K mm | P mm | R mm |
| 2 | | 73�0 | 32 | 15 | 29 | 6 | 12 |
| 3 | | 74�0 | 34 | 15 | 30 | 8 | 16 |
| 4 | | 88�5 | 42 | 20 | 38 | 10 | 20 |
| 5 | | 119�0 | 58 | 30 | 49 | 12 | 26 |
Design and use: - high concentricity - point angle 60° - triple bearing - live centres through hardened, thus unlimited regrindable - long service life due to spray water groove, improved lifetime lubrication and tight tolerance bearing seats - low interference contour due to slim housing construction
220201 Body hardened and ground
| MT | 220201 | A mm | B mm | D mm | G mm | K mm | max� workpiece weight kg | max� radial deviation mm | max� speed min -1 |
| 3 | | 82�5 | 55�0 | 25 | 23�825 | 30�3 | 300 | 0�005 | 8,500 |
| 4 | | 101�5 | 68�5 | 32 | 31�267 | 39�8 | 500 | 0�005 | 6,000 |
| 5 | | 128�0 | 88�5 | 40 | 44�399 | 49�3 | 630 | 0�005 | 4,500 |
Design: - body and live centre forged, hardened and ground - regular fibre orientation - live centres repeatedly regrindable - high runout accuracy due to precise roller bearings, life-time lubrication, maintenance-free - sealed against dirt and cooling water - suitable for high speeds and corresponding workpiece weights - size 3 in addition with extended live centre is 40°/60° - with draw-off nut - for use on modern high-performance lathes
220220 for high speeds, with ejector nut
max� workpiece max� radial max� B
A B D J K max� radial load
MT 220220 weight deviation speed
mm mm mm mm mm daN
kg mm min -1
| 3 | | 86�0 45 20 | 6 | 30 | 500 | 0�005 | 9,000 | 250 | ||
| 4 | | 102�5 82 32 — 40 | 800 | 0�005 | 5,000 | 400 | K | |||
| 5 | | 102�5 82 32 — 40 | 800 | 0�005 | 5,000 | 400 | A |
