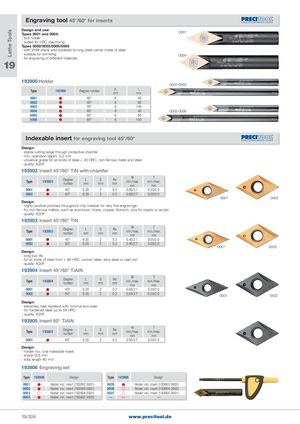

Engraving tool 45°/60° for inserts
Types 0001 and 0004: 0001 - tool holder - suited for HSC machining Types 0002/0003/0005/0006 - with VHM shank and soldered turning plate carrier made of steel - suitable for shrinking 0004 19 - for engraving of different materials
193900 Holder
| Type | 193900 | Degree number | d1 mm | l1 mm | 0002-0003 |
| 0001 | | 45° | 6 | 40 | |
| 0002 | | 45° | 6 | 60 | |
| 0003 | | 45° | 6 | 100 | |
| 0004 | | 60° | 6 | 40 | 0005-0006 |
| 0005 | | 60° | 6 | 60 | |
| 0006 | | 60° | 6 | 100 |
Indexable insert for engraving tool 45°/60°
Design: - stable cutting edge through protective chamfer - min. operation depth: 0.2 mm - universal grade for all kinds of steel < 30 HRC, non-ferrous metal and steel - quality: K20F
193902 Insert 45°/60° TiN with chamfer
| Type | 193902 | Degree number | L mm | S mm | Re mm | W min�/max� mm | T min�/max� mm |
| 0001 | | 45° | 6�35 | 2 | 0�2 | 0�65/2�1 | 0�20/2�0 |
| 0002 | | 60° | 6�35 | 2 | 0�2 | 0�65/2�7 | 0�20/2�0 |
0001 0002
Design: - highly positive polished throughout chip breaker for very fine engravings - for non-ferrous metals, such as aluminium, brass, copper, titanium, plus for plastic or acrylic - quality: K20F
193903 Insert 45°/60° TiN
| Type | 193903 | Degree number | L mm | S mm | Re mm | W min�/max� mm | T min�/max� mm |
| 0001 | | 45° | 6�35 | 2 | 0�2 | 0�45/2�1 | 0�05/2�0 |
| 0002 | | 60° | 6�35 | 2 | 0�2 | 0�45/2�7 | 0�05/2�0 |
Design: - long tool life - for all kinds of steel from < 48 HRC, carbon steel, alloy steel or cast iron - quality: K20F
193904 Insert 45°/60° TiAIN
W T
Degree L S Re
Type 193904 min�/max� min�/max�
| number | mm | mm | mm | ||||
| mm | mm | ||||||
| 0001 | | 45° | 6�35 | 2 | 0�2 | 0�65/2�1 | 0�20/2�0 |
| 0002 | | 60° | 6�35 | 2 | 0�2 | 0�65/2�7 | 0�20/2�0 |
Design: - extremely heat resistant with minimal tool wear - for hardened steel up to 56 HRC - quality: K20F
193905 Insert 60° TiAIN
W T
Degree L S Re
Type 193905 min�/max� min�/max�
| number | mm | mm | mm | ||||
| mm | mm | ||||||
| 0001 | | 60° | 6�35 | 2 | 0�2 | 0�65/2�7 | 0�20/2�0 |
Design: - holder incl. one indexable insert - shank Ø 6 mm - total length 40 mm
193906 Engraving set
| Type | 193906 | Design | Type | 193906 | Design | ||
| 0001 | | Holder incl� insert (193902 0001) | 0005 | | Holder incl� insert (193903 0002) | ||
| 0002 | | Holder incl� insert (193903 0001) | 0006 | | Holder incl� insert (193904 0002) | ||
| 0003 | | Holder incl� insert (193904 0001) | 0007 | | Holder incl� insert (193905 0001) | ||
| 0004 | | Holder incl� insert (193902 0002) | — | — | — |
0001 0002
0001 0002
