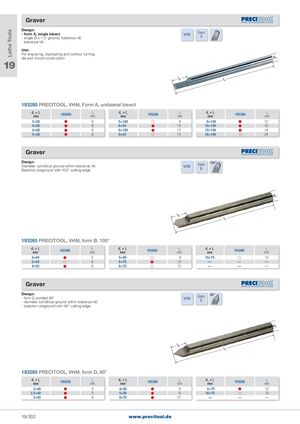

Graver
- form A, single bisect Form - single Ø x 1.5. ground, tolerance h6. A - tolerance h6
Use: For engraving, duplicating and contour turning, 19 die and mould construction
193280 PRECITOOL, VHM, Form A, unilateral bisect
| d × l | l | d × l | l | d × l | l | |||
| 1 | 1 193280 | 2 | 1 | 1 193280 | 2 | 1 | 1 193280 | 2 |
| mm | mm | mm | mm | mm | mm | |||
| 3×50 | | 6 | 5×100 | | 8 | 8×100 | | 12 |
| 4×50 | | 8 | 6×50 | | 12 | 10×100 | | 15 |
| 4×60 | | 8 | 6×100 | | 12 | 12×100 | | 18 |
| 5×50 | | 8 | 8×50 | | 12 | 16×100 | | 24 |
Graver Design: 100° Diameter cylindrical ground within tolerance h6. Form VHM
Bisection preground with 100° cutting edge. B
193265 PRECITOOL, VHM, form B, 100°
| d × l | l | d × l | l | d × l | l | |||
| 1 | 1 193265 | 2 | 1 | 1 193265 | 2 | 1 | 1 193265 | 2 |
| mm | mm | mm | mm | mm | mm | |||
| 2×40 | | 5 | 5×50 | | 8 | 10×75 | | 15 |
| 3×50 | | 6 | 6×75 | | 12 | — | — | — |
| 4×50 | | 8 | 8×75 | | 12 | — | — | — |
Graver Design: 60° - form D pointed 60° Form VHM
- diameter cylindrical ground within tolerance h6. D - bisection preground with 60° cutting edge.
193285 PRECITOOL, VHM, form D, 60°
| d × l | l | d × l | l | d × l | l | ||||||
| 1 | 1 | 193285 | 2 | 1 | 1 | 193285 | 2 | 1 | 1 | 193285 | 2 |
| 2×40 | | 5 | 4×50 | | 8 | 8×75 | | 12 | |||
| 2,5×40 | | 5 | 5×50 | | 8 | 10×75 | | 15 | |||
| 3×50 | | 6 | 6×75 | | 12 | — | — | — |
