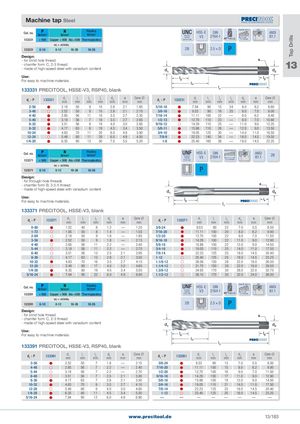

Общий каталог PRECITOOL - страница 188

	P		N	Plastics	UNC	HSS-E	DIN	Chamfer form C	UNC ANSI
	N/mm2		N/mm2	N/mm2		V3	2184-1		B1.1
					american
					UNIFIED			40° Twist L
133331	< 900 Copper < 900 Alu <500 Thermoplastics				coarse thread			2-3 threads
		vc = m/min.						P
133331	6-10	8-12		18-26 18-26	2B		2.5 × D

Design: Blind hole - for blind hole thread 13 - chamfer form C, 2-3 thread - made of high-speed steel with vanadium content

Use: For easy to machine materials.

133331 PRECITOOL, HSSE-V3, RSP40, blank

		d	l	l	l	d	a	Core x					d		l	l	l	d	a	Core x
d - P	133331	1	1	2	4	2			d - P	133331			1		1	2	4	2
1		mm	mm	mm	mm	mm	mm	mm		1			mm	mm		mm	mm	mm	mm	mm
2-56		2�18	50	9	10	2�8	2�1	1�85	5/16-18				7�94		90	15	34	8�0	6�2	6�60
3-48		2�52	50	9	10	2�8	2�1	2�10	3/8-16				9�53		90	16	35	9�0	7�0	8�00
4-40		2�85	56	11	18	3�5	2�7	2�35	7/16-14			11�11		100		22	—	8�0	6�2	9�40
5-40		3�18	56	7	18	3�5	2�7	2�65	1/2-13			12�70		110		23	—	9�0	7�0	10�80
6-32		3�51	56	8	19	4�0	3�0	2�85	9/16-12			14�29		110		25	—	11�0	9�0	12�25
8-32		4�17	63	8	19	4�5	3�4	3�50	5/8-11			15�88		110		28	—	12�0	9�0	13�50
10-24		4�83	70	11	20	6�0	4�9	3�90	3/4-10			19�05		125		30	—	14�0	11�0	16�50
12-24		5�49	80	11	29	6�0	4�9	4�50		7/8-9 		22�23		140		34	—	18�0	14�5	19�50
1/4-20		6�35	80	13	30	7�0	5�5	5�20		1-8 		25�40		160		38	—	18�0	14�5	22�25
	P	N		Plastics							UNF		HSS-E		DIN		Chamfer form B	UNF	ANSI
Cat. no.																		60°		2B
	N/mm2	N/mm2		N/mm2									V3		2184-1				B1.1
											American
											UNIFIED						L
133371	< 900 Copper < 900 Alu <500 Thermoplastics										fine thread						3,5-5 threads
		vc = m/min.											P
133371	6-10	8-12	18-26	18-26

Design: Through hole - for through-hole threads - chamfer form B, 3.5-5 thread - made of high-speed steel with vanadium content

Use: For easy to machine materials.

133371 PRECITOOL, HSSE-V3, blank

d - P	133371		d l	l	d	a	Core x		133371 d - P	d	l	l		d	Core x a
		mm1	mm1	mm2	mm2	mm	mm			mm1	mm1	mm2	mm2	mm	mm
1									1
0-80		1�52	40	8	1�2	—	1�25	3/8-24		9�53	90	22	7�0	5�5	8�50
1-72		1�85	50	8	1�4	—	1�55	7/16-20		11�11	100	20	8�0	6�2	9�90
2-64		2�18	50	9	1�6	—	1�85	1/2-20		12�70	100	22	9�0	7�0	11�50
3-56		2�52	50	9	1�8	—	2�15	9/16-18		14�29	100	22	11�0	9�0	12�90
4-48		2�85	56	11	2�2	—	2�40	5/8-18		15�88	100	22	12�0	9�0	14�50
5-44		3�18	56	11	2�2	—	2�70	3/4-16		19�05	110	25	14�0	11�0	17�50
6-40		3�51	56	13	2�5	2�1	2�95	7/8-14		22�23	125	25	18�0	14�5	20�40
8-36		4�17	63	13	2�8	2�1	3�50	1-12		25�40	125	25	18�0	14�5	23�25
10-32		4�83	70	16	3�5	2�7	4�10	1.1/8-12		28�58	150	28	22�0	18�0	26�50
12-28		5�49	80	17	4�0	3�0	4�60	1.1/4-12		31�75	150	28	22�0	18�0	29�50
1/4-28		6�35	80	19	4�5	3�4	5�50	1.3/8-12		34�93	170	30	28�0	22�0	32�75
5/16-24		7�94	90	22	6�0	4�9	6�90	1.1/2-12		38�10	170	30	32�0	24�0	36�00
	P	N		Plastics					UNF	HSS-E	DIN			Chamfer form C	UNF ANSI
Cat. no.															60°
	N/mm2	N/mm2		N/mm2							2184-1				B1.1
									American	V3
133391	< 900 Copper < 900 Alu <500 Thermoplastics								UNIFIED			40° Twist		L
									fine thread					2-3 threads
	vc = m/min.											P
133391	6-10 8-12		18-26	18-26					2B		2.5 × D

Design: Blind hole - for blind hole thread - chamfer form C, 2-3 thread - made of high-speed steel with vanadium content

Use: For easy to machine materials.

133391 PRECITOOL, HSSE-V3, RSP40, blank

d1- P	133391	d1 mm	l1 mm	l2 mm	d2 mm	a mm	Corex mm	d1- P	133391	d1 mm	l1 mm	l2 mm	d2 mm	a mm	Corex mm
3-56		2�52	50	7	1�8	—	2�15	3/8-24		9�53	90	13	7�0	5�5	8�50
4-48		2�85	56	7	2�2	—	2�40	7/16-20		11�11	100	15	8�0	6�2	9�90
5-44		3�18	56	7	2�2	—	2�70	1/2-20		12�70	100	16	9�0	7�0	11�50
6-40		3�51	56	7	2�5	2�1	3�00	9/16-18		14�29	100	17	11�0	9�0	12�90
8-36		4�17	63	7	2�8	2�1	3�50	5/8-18		15�88	100	19	12�0	9�0	14�50
10-32		4�83	70	9	3�5	2�7	4�10	3/4-16		19�05	110	21	14�0	11�0	17�50
12-28		5�49	80	9	4�0	3�0	4�60	7/8-14		22�23	125	23	18�0	14�5	20�40
1/4-28		6�35	80	11	4�5	3�4	5�50	1-12		25�40	125	25	18�0	14�5	23�25
5/16-24		7�94	90	12	6�0	4�9	6�90	—	—	—	—	—	—	—	—
